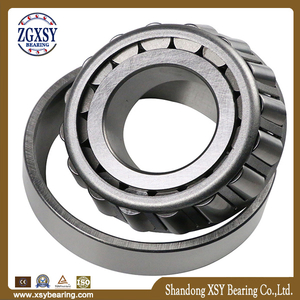

Tapered roller bearings consist of four interdependent components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The taper angles allow the bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of the tapered roller bearing to handle thrust loads. Tapered roller bearing is separable.
Bearing No. | Boundary dimensions | Mass | ||
mm | Kg | |||
d | D | T | ≈ | |
30202 | 15 | 35 | 11.75 | 0.053 |
30203 | 17 | 40 | 13.25 | 0.096 |
30204 | 20 | 47 | 15.25 | 0.128 |
30205 | 25 | 52 | 16.25 | 0.153 |
30206 | 30 | 62 | 17.25 | 0.232 |
30207 | 35 | 72 | 18.25 | 0.337 |
30208 | 40 | 80 | 19.75 | 0.422 |
30209 | 45 | 85 | 20.75 | 0.476 |
30210 | 50 | 90 | 21.75 | 0.538 |
30211 | 55 | 100 | 22.75 | 0.715 |
30212 | 60 | 110 | 23.75 | 0.905 |
30213 | 65 | 120 | 24.75 | 1.12 |
30214 | 70 | 125 | 26.25 | 1.26 |
30215 | 75 | 130 | 27.25 | 1.36 |
30216 | 80 | 140 | 28.25 | 1.67 |
30217 | 85 | 150 | 30.5 | 2.08 |
30218 | 90 | 160 | 32.5 | 2.53 |
30219 | 95 | 170 | 34.5 | 3.06 |
30220 | 100 | 180 | 37 | 3.72 |
30221 | 105 | 190 | 39 | 4.39 |
30222 | 110 | 200 | 41 | 5.21 |
30224 | 120 | 215 | 43.5 | 6.19 |
30226 | 130 | 230 | 43.75 | 6.94 |
30228 | 140 | 250 | 45.75 | 8.75 |
30230 | 150 | 270 | 49 | 10.8 |
30232 | 160 | 290 | 52 | 12.9 |
30234 | 170 | 310 | 57 | 19 |
30236 | 180 | 320 | 57 | 20 |
30238 | 190 | 340 | 60 | 24 |
30240 | 200 | 360 | 64 | 25 |
