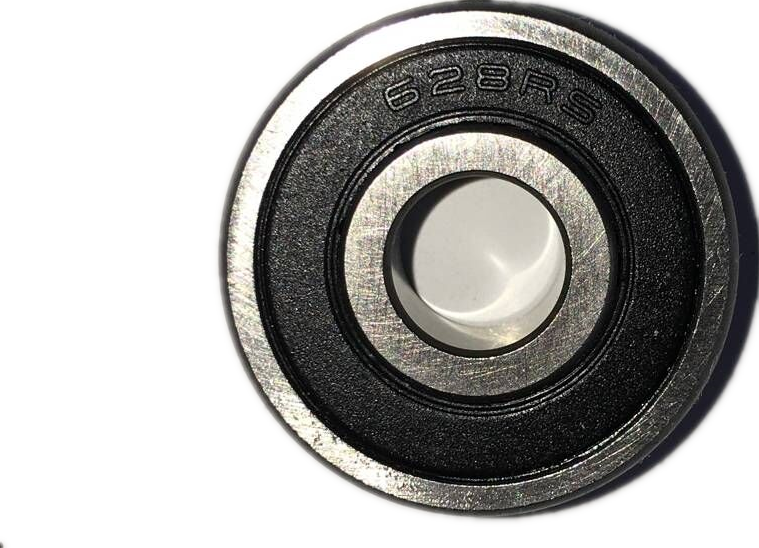

Deep Groove Ball Bearing Description
Deep groove ball bearings have high speed and are widely used as radial bearings. These non-separable bearings are available in a wide variety of seal, shield and snap-ring arrangements. Deep Groove Ball Bearings are cost-effective and maintenance free. They are basically used when axial loads from two directions have to be transmitted & there is not enough space to allow installation of matched spindle bearings and when speed is less important when compared to required guidance of the rotating parts.
Physical Characteristics
• Comprises of deep uninterrupted raceways
• Ring grooves are circular arcs made slightly larger than the radius of the ball
• The balls make point contact with the raceways
• The inner ring shoulders are of equal height
Advantages of Deep Groove Ball Bearings
• Sustain radial, axial, or composite loads.
• Provide both high-running accuracy & high-speed operation
• Can replace high speed angular contact ball bearings
• Simple design
• Maintenance free
• Longer service life
Bearing No. | Boundary dimensions | Mass | ||
mm | Kg | |||
d | D | B | ≈ | |
6700 | 10 | 15 | 3 | 0.0015 |
6701 | 12 | 18 | 4 | 0.002 |
6702 | 15 | 21 | 4 | 0.0025 |
6703 | 17 | 23 | 4 | 0.0025 |
6704 | 20 | 27 | 4 | 0.0045 |
6705 | 25 | 32 | 4 | 0.005 |
6706 | 30 | 37 | 4 | 0.006 |
