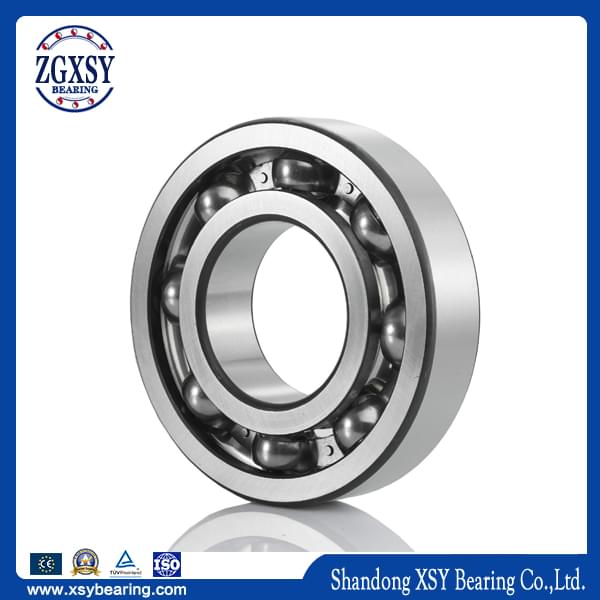

Deep groove ball bearing Feature ；
1.The most representative of the rolling bearings, widely used
2.Outer ring with a ring or flange bearing, that is easy to axial positioning, and easy to install the shell;
3.The maximum load bearing size is the same as the standard bearing, but the inner and outer rings have a trough, which increases the number of balls and improves the rated load.
Company Information:
1.With more than 25 years experiences of producing and R&D bearings.
2. All of ours roller bearing and ball bearings with CE ISO TUV certificate
3. Our products have been exported to about thirty country/areas, and enjoyed a high reputation on the domestic and overseas market.
4. The OEM and ODM are available.
5. Professional after-sales team.
6. Offering most reasonable price
More choice:
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
| 604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
| 607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
| 6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
| 6008 | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
Package:
*industrial pakage+outer carton+pallets
*sigle box+outer carton+pallets
*Tube package+middle box+outer carton+pallets
*According to your requirments
FAQ:
Shandong XSY bearing co., Ltd. is a professional factory of deep groove ball bearings
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. What's benefit will you bring?
Your clients will be satisfied of the quality.
Your clients continue orders.
Your can get good reputation from your market and obtain more orders.
Contact person: Spencer
Shandong XSY Bearing Co.,Ltd
Add:International exhibition Shangri-La,New&high-tech Zones,Jinan City,Shandong Province,China. Zip code:250011
Tel & Fax:0531-88988425
WhatsApp&Phone& Skype: +86 18853123821
Wechat: 1135704760
Email: vicky@xsybearing.com
Website:www.xsybearing.com
