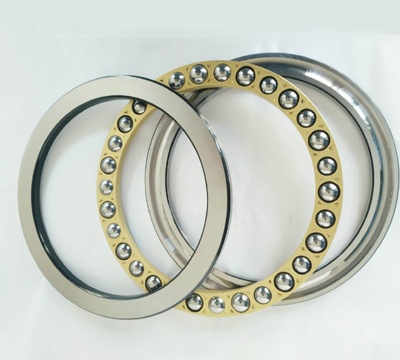

Thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage thrust assembly. The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted seperately. Thrust ball bearings, as their name suggests, can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
Bearing No. | Boundary dimensions | Mass | ||
mm | Kg | |||
d | D | T | ≈ | |
51305 | 25 | 52 | 18 | 0.17 |
51306 | 30 | 60 | 21 | 0.26 |
51307 | 35 | 68 | 24 | 0.37 |
51308 | 40 | 78 | 26 | 0.53 |
51309 | 45 | 85 | 28 | 0.66 |
51310 | 50 | 95 | 31 | 0.92 |
51311 | 55 | 105 | 35 | 1.28 |
51312 | 60 | 110 | 35 | 1.37 |
51313 | 65 | 115 | 36 | 1.48 |
51314 | 70 | 125 | 40 | 1.98 |
51315 | 75 | 135 | 44 | 2.58 |
51316 | 80 | 140 | 44 | 2.69 |
51317 | 85 | 150 | 49 | 3.47 |
51318 | 90 | 155 | 50 | 3.69 |
51320 | 100 | 170 | 55 | 4.86 |
