XSY bearing Co., Ltd. has its own factory. We make sure to offer you the most competitive price with the best products.
XSY bearing Co., Ltd. has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed.
XSY bearing Co., Ltd. is a bearing manufacturer since 1990. 26 years of rich experience makes us more professional.
Automated production lines insure the unified quality and low cost and delivery time.
The bearing is long durability, high speed and low noise.
OEM & ODM are available.
All kinds of bearing samples are available.
| Automotive Bearings | ||
| Engine System | Generator | Deep Groove Ball Bearing, Cylindrical Roller Bearing |
| Pulley | Angular Contact Ball Bearing | |
| Tensioning Wheel | Deep Groove Ball Bearing, Tapered Roller Bearing, Pillow Block Bearing | |
| Water Pump | Angular Contact Ball Bearing, Cylindrical Roller Bearing | |
| Drive System | Clutch Release | Angular Contact Ball Bearing, Thrust Ball Bearing |
| Transmission | Ball Bearing, Tapered Roller Bearing, Cylindrical Roller Bearing | |
| Shaft Support | Thrust Needle Bearing | |
| Final Reducer and Differential | Tapered Roller Bearing, Cylindrical roller bearing | |
| Wheel Hub | Angular Contact Ball Bearing, Deep Groove Ball Bearing, Tapered Roller Bearing | |
| Steering System | Steering Column | Needle Bearing |
| Steering Shaft | Needle Bearing | |
| Steering Gear | Cylindrical Roller Bearing, Thrust Ball Bearing | |
| Knuckle Kingpin | Cylindrical Roller Bearing, Tapered Roller Bearing | |
| Air conditioner System | Air condition Compressor | Angular Contact Ball Bearing |
| Electromagnetic Clutch | Angular Contact Ball Bearing | |

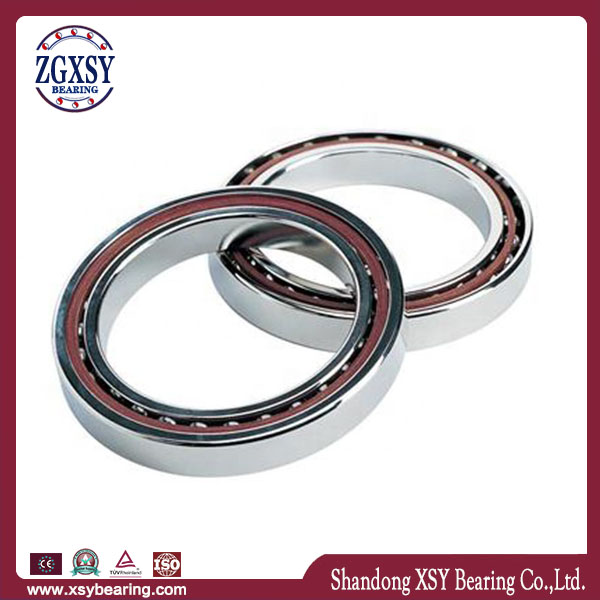

About Angular Contact Ball Bearing
Similar to other ball bearings, angular contact ball bearings are composed of inner and outer races, ball complement and bearing cage; however, different to other ball bearings like a deep groove ball bearing, an angular contact ball bearing is designed with axially asymmetric race.
| Mod. No. | d | D | Height | Cr | Cor | Grease | Oil | Weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| 7218C | 90 | 160 | 30 | 123 | 105 | 6500 | 8600 | 2.3 |
| 7218AC | 90 | 160 | 30 | 113 | 96.7 | 4700 | 5900 | 2.3 |
| 7218B | 90 | 160 | 30 | 102 | 88 | 3500 | 4700 | 2.3 |
| 7318B | 90 | 190 | 43 | 148 | 124 | 3100 | 4200 | 5.3 |
| 7019C | 95 | 145 | 24 | 73.4 | 73.4 | 6700 | 8900 | 1.32 |
| 7019AC | 95 | 145 | 24 | 66.6 | 67.1 | 4800 | 6000 | 1.32 |
| 7219C | 95 | 170 | 32 | 133 | 112 | 6100 | 8100 | 2.78 |
| 7219AC | 95 | 170 | 32 | 122 | 103 | 4400 | 5500 | 2.78 |
| 7219B | 95 | 170 | 32 | 111 | 94 | 3300 | 4400 | 2.78 |
| 7319B | 95 | 200 | 45 | 158 | 137 | 3000 | 4000 | 6.12 |
| 7020C | 100 | 150 | 24 | 75.3 | 77.2 | 6500 | 8600 | 1.37 |
| 7020AC | 100 | 150 | 24 | 68.4 | 70.6 | 4700 | 5900 | 1.37 |
| 7220C | 100 | 180 | 34 | 149 | 127 | 5700 | 7600 | 3.32 |
| 7220AC | 100 | 180 | 34 | 137 | 117 | 4100 | 5200 | 3.32 |
| 7220B | 100 | 180 | 34 | 124 | 107 | 3100 | 4200 | 3.32 |
| 7320B | 100 | 215 | 47 | 168 | 148 | 2700 | 3600 | 7.53 |
| 7021C | 105 | 160 | 26 | 87.8 | 89.6 | 6000 | 8000 | 1.73 |
| 7021AC | 105 | 160 | 26 | 79.8 | 81.9 | 4400 | 5500 | 1.73 |
| 7221C | 105 | 190 | 36 | 162 | 143 | 5400 | 7200 | 3.95 |
| 7221AC | 105 | 190 | 36 | 149 | 132 | 3900 | 4900 | 3.95 |
| 7221B | 105 | 190 | 36 | 135 | 121 | 2900 | 3900 | 3.95 |
| 7321B | 105 | 225 | 49 | 191 | 177 | 2600 | 3500 | 8.62 |
| 7022C | 110 | 170 | 28 | 101 | 101 | 5800 | 7700 | 2.14 |
| 7022AC | 110 | 170 | 28 | 91.9 | 92.8 | 4200 | 5200 | 2.14 |
| 7222C | 110 | 200 | 38 | 176 | 160 | 5100 | 6800 | 4.65 |
| 7222AC | 110 | 200 | 38 | 162 | 148 | 3700 | 4600 | 4.65 |
| 7222B | 110 | 200 | 38 | 147 | 135 | 2800 | 3700 | 4.65 |
| 7322B | 110 | 240 | 50 | 213 | 208 | 2400 | 3200 | 10.1 |
| S7001J | 12 | 28 | 8 | 2.3 | 2.68 | 18000 | 26000 | - |
| S78201J | 12 | 32 | 7 | 2.5 | 3 | 17000 | 24000 | 0.028 |
| S7002J | 15 | 32 | 9 | 2.5 | 3.68 | 17000 | 24000 | 0.028 |
| S78202J | 15 | 35 | 8 | 3.3 | 4,00 | 16000 | 22000 | 0.035 |
| SN7202J | 15 | 35 | 11 | 6.7 | 4.5 | 16000 | 22000 | 0.0436 |
| S7202J | 15 | 35 | 11 | 3.7 | 4.5 | 16000 | 22000 | 0.044 |
| SN7203J | 17 | 40 | 12 | 9.2 | 6.45 | 15000 | 20000 | 0.0596 |
| S7004J | 20 | 42 | 12 | 3.8 | 4.92 | 14000 | 19000 | 0.065 |
| SN7204J | 20 | 47 | 14 | 10.1 | 8.05 | 13000 | 18000 | 0.0946 |
| SN7205J | 25 | 52 | 15 | 12.8 | 9.55 | 11000 | 16000 | 0.114 |
| SN7206J | 30 | 62 | 16 | 17.8 | 14.8 | 9000 | 13000 | 0.187 |
| S718/600 | 600 | 730 | 60 | 332 | 888 | 380 | 500 | 60.7 |
| S718/800 | 800 | 980 | 82 | 568 | 1890 | 200 | 300 | 132 |
| S718/1180 | 1180 | 1420 | 106 | 850 | 3580 | - | - | 332 |
| 3200 | 10 | 30 | 14.3 | 7.35 | 5.35 | 15000 | 20000 | 0.052 |
| 3201 | 12 | 32 | 15.9 | 9.7 | 7.15 | 14000 | 18000 | 0.063 |
| 3202 | 15 | 35 | 15.9 | 9.7 | 7.45 | 12000 | 16000 | 0.072 |
| 3203 | 17 | 40 | 17.5 | 13.8 | 10.8 | 11000 | 14000 | 0.1 |
| Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, 160 **(70001 ) |
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings such as 938/932 single and double row i.e M255410CD etc. | |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in steel Industry. |
FAQ
1. Are you a factory or a trading company?
Shandong XSY Bearing Co., Ltd. is a professional manufacture of deep groove ball bearings and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, Westunion, Paypal,etc., and it can be negotiated according to different orders with different amount.
7. Can we visit your factory ?
Sure. Welcome to XSY Bearing Co., Ltd. and offer your kind guidance.
8.How to stock and maintenance my bearings?
Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;
Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidityor extreme temperature that may result in condensation forming;
Always put oiled paper or, if not available, put plastic sheets between rollers and cup races of tapered roller bearings.
