All Self-Aligning Ball Bearing Sizes with two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins.The All Self-Aligning Ball Bearing Sizess are characteristic of their way into spherical shape, have so can compensate concentricity and deflection error made All Self-Aligning Ball Bearing Sizes. |

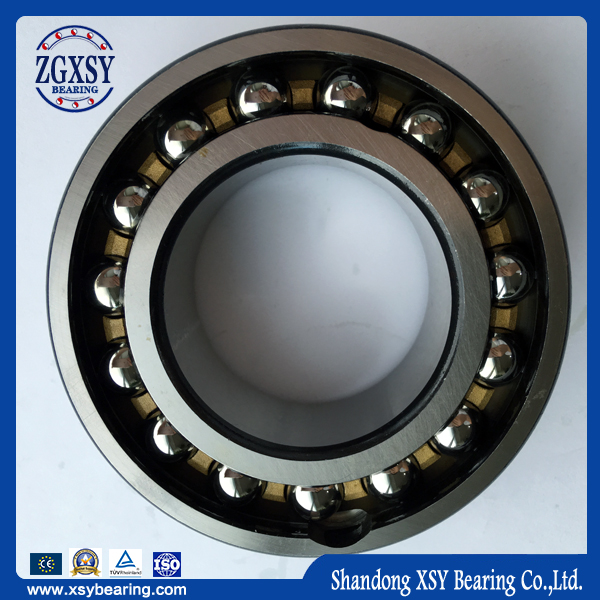

Japan Brand Steel Cage Self aligning Ball Bearing 2205
| Double Row Self aligning Ball Bearing | |
Model Number | 2205 , 2205k , any more |
StructureType | Single row self aglining ball bearing |
Brand Name | ZGXSY |
Inside Dia x Outside Dia x Width | 20 x 52 x 18 mm |
Net weight | 0.168 kg |
Seals Type | open , seals , sheild |
Number of Row | Single row ,double row |
Place of Origin | China / Germany / Japan |
Material | Chrome steel , Gcr15 |
Cage | Brass , steel , nylon |
Vibration Level | V1, V2, V3 |
Clearance | C0, C1, C2, C3, C4, C5 |
Precision Rating | P6, P5, P4 |
Hardness | 59-63HRC |
Service | OEM or original brand |
Sample available | Yes |
Quality guaranteed | Yes |
Certificate | ISO9001:2008, ISO/TS16949 , Certificate of Origin |
Other Service | Design service, Buyer brand service |
Packaging Details | Industrial Packing, Individual Boxed Packing, or Original brand package |
Delivery Detail | 2-7 days after receiving the payments or dep |
We can supply another Item:
Model | Specifiction (d*D*B mm ) | Weight(kg) |
| 2309 | 45*100*36 | 1.200 |
| 1210 | 50*90*20 | 0.525 |
| 2210 | 50*90*23 | 0.564 |
| 1310 | 50*110*27 | 1.250 |
| 2310 | 50*110*40 | 1.580 |
| 1211 | 55*100*21 | 0.705 |
| 2211 | 55*100*25 | 0.746 |
| 1311 | 55*120*29 | 1.600 |
| 2311 | 55*120*43 | 2.030 |
| 1212 | 60*110*28 | 0.900 |
| 2212 | 60*110*28 | 1.030 |
| 2312 | 60*130*46 | 2.570 |
| 2213 | 65*120*31 | 1.400 |
| 1313 | 65*140*33 | 2.540 |
| 1214 | 70*125*24 | 1.30 |
| 1314 | 70*150*35 | 3.19 |
| 2214 | 70*125*31 | 1.52 |
| 1215 | 75*130*25 | 1.41 |
| 1315 | 75*160*37 | 3.65 |
| 2315 | 75*160*55 | 4.77 |
| 1316 | 80*170*26 | 4.31 |
| 2216 | 80*140*33 | 1.97 |
| 2316 | 80*170*58 | 5.54 |
| 1217 | 85*150*28 | 2.09 |
| 2317 | 85*180*60 | 6.56 |
| 1317 | 85*180*41 | 5.13 |
| 1218 | 90*160*30 | 2.55 |
| 1318 | 90*190*43 | 5.94 |
| 2318 | 90*190*64 | 7.76 |
| 1220 | 100*180*34 | 3.82 |
| 2220 | 100*180*46 | 4.53 |
| 1320 | 100*215*47 | 8.46 |
All Self-Aligning Ball Bearing Sizes Family Models:
Single self-aligning ball All Self-Aligning Ball Bearing Sizes
Double self-aligning ball All Self-Aligning Ball Bearing Sizes 2200 2300 Series
Single aligning ball All Self-Aligning Ball Bearing Sizes 1200 Series
Single aligning ball All Self-Aligning Ball Bearing Sizes 1300 Series
Self aligning Ball Bearing Application :
Self-aligning ball bearing applies to carry heavy load and impact load , precision instruments ,
low noise motors , automobiles , motorcycles , metallurgy , mill , mining , petroleum , paper making ,
cement , sugar and other industries and general machinery .
