Spherical Thrust Roller Bearing

Bore Diameter:60-340mm

Outside diameter: 130-620mm

Width:42-170mm

Rolling Type: Roller

Closure Type:Open

Row Type& Fill Slot:Single

Material Type:Beaing Steel

Quantity:
Availability:





Inquire Add to Basket

Product Description

A spherical roller thrust bearing is a rolling-element bearing of thrust type that permits rotation with low friction, and permits angular misalignment. The bearing is designed to take radial loads, and heavy axial loads in one direction. Typically these bearings support a rotating shaft in the bore of the shaft washer that may be misaligned in respect to the housing washer. The misalignment is possible due to the spherical internal shape of the house washer.

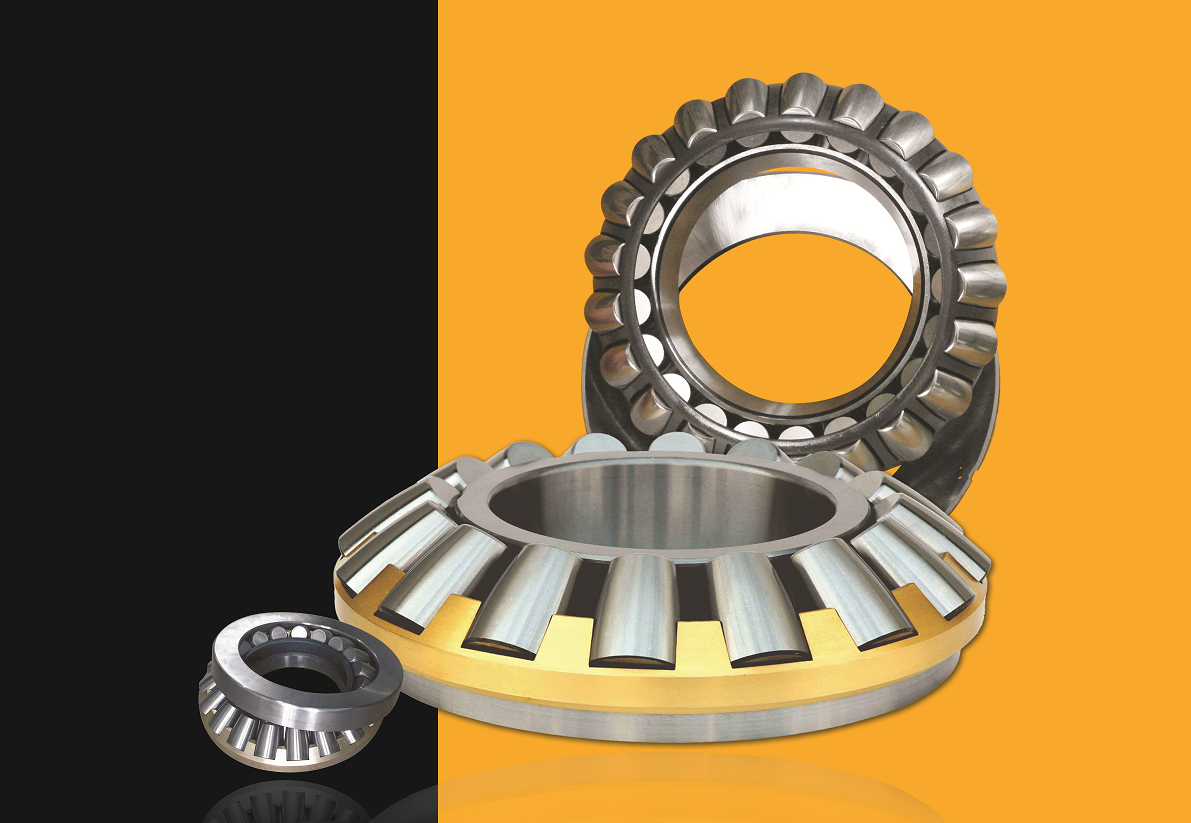

1476345843

Item No.		Dimension/mm				Install Size/mm			Basic Load Rating/kN		Minimum load constant	Limited Speed/(r/min)
New	Old	d	D	T	E	da min	Da max	ras max	Ca	Coa	A	Grease	Oil
29412	9039412	60	130	42	38	90	107	1.5	319	897	0.086	—	2400
29413	9039413	65	140	45	42	100	115	2	371	1 048	0.118	—	2200
29414	9039414	70	150	48	44	105	124	2	416	1 198	0.155	1 400	2000
29415	9039415	75	160	51	47	115	132	2	468	1 367	0.21	—	1900
29416	9039416	80	170	54	50	120	141	2.1	532	1 563	0.263	1 100	1700
29317	9039317	85	150	39	50	115	129	1.5	326	1 037	0.105	—	2200
29417	9039417		180	58	54	130	150	2.1	582	1 708	0.304	—	1600
29318	9039318	90	155	39	52	118	135	1.5	335	1 089	0.116	—	2200
29418	9069418		190	60	56	135	158	2.1	642	1 904	0.392	950	1500
29320	9039320	100	170	42	58	132	148	1.5	390	1 284	0.166	—	2000
29420	9039420		210	67	62	150	175	2.5	778	2 343	0.588	—	1300
29322	9039322	110	190	48	64	145	165	2	487	1 625	0.279	—	1800
29422	9039422		230	73	69	165	192	3	923	2 854	0.724	—	1200
29324	9039324	120	210	54	70	160	182	2.1	620	2 066	0.44	—	1600
29424	9039424		250	78	74	180	210	3	1 074	3 308	0.933	—	1100
29326	9039326	130	225	58	76	170	195	2.1	663	2 235	0.543	—	1500
29426	9039426		270	85	81	195	227	3	1 249	3 918	1.64	—	1000
29328	9039328	140	240	60	82	185	208	2.1	719	2 539	0.71	—	1400
29428	9039428		280	85	86	205	237	3	1 288	4 133	1.796	—	950
29330	9039330	150	250	60	87	195	220	2.1	781	2 753	0.774	—	1300
29430	9039430		300	90	92	220	253	3	1 452	4 680	2.285	—	900
29332	9039332	160	270	67	92	210	236	2.5	927	3 253	1.063	—	1200
29432	9039432		320	95	99	230	271	4	1 589	5 315	2.969	—	800
29334	9039334	170	280	67	96	220	247	2.5	940	3 358	1.16	—	1100
29434	9039434		340	103	104	245	288	4	1 878	6 265	4.015	—	750
29336	9039336	180	300	73	103	235	263	2.5	1 111	4 056	1.628	—	1000
29436	9039436		360	109	110	260	305	4	2 056	6 867	4.936	—	670
29338	9039388	190	320	78	110	250	281	3	1 301	4 861	2.294	—	900
29438	9039438		380	115	117	275	322	4	2 297	7 774	6.228	—	600
29240	9039240	200	280	48	108	235	258	2	612	2 518	0.759	—	1400
29340	9039340		340	85	116	265	298	3	1 430	5 181	2.827	—	900
29440	9039440		400	122	122	290	338	4	2 483	8 386	7.588	—	600
29244	9039244	220	300	48	117	260	277	2	634	2 705	0.749	—	1300
29344	9039344		360	85	125	285	316	3	1 524	5 661	3.21	—	800
29444	9039444		420	122	132	310	360	5	2 588	8 990	8.583	—	560
29248	9039248	240	340	60	130	285	311	2.1	915	3 951	1.483	—	1100
29348	9039348		380	85	135	300	337	3	1 583	6 014	3.569	—	750
29448	9039448		440	122	142	330	381	5	2 725	9 771	9.656	—	530
29252	9029252	260	360	60	139	305	331	2.1	944	4 207	1.754	—	1000
29352	9039352		420	95	148	330	372	4	1 940	7 716	6.073	—	670
29452	9039452		480	132	154	360	419	5	3 247	11 930	14.45	—	480
29256	9039256E	280	380	60	150	325	351	2.1	954	4 348	1.855	—	950
29356	9039356		440	95	158	350	394	4	2 023	8 207	6.782	—	630
29456	9039456		520	145	166	390	446	5	3 753	13 794	20.73	—	430
29260	9039260	300	420	73	162	355	386	2.5	1 340	6 057	3.43	—	900
29360	9039360		480	109	168	380	429	4	2 554	10 396	10.2	—	560
29460	9039460		540	145	175	410	471	5	3 895	14 689	22.95	—	380
29264	9039264	320	440	73	172	375	406	2.5	1 046	6 556	3.822	—	800
29364	9039364		500	109	180	400	449	4	2 578	10 691	11.15	—	530
29464	9039464		580	155	191	435	507	6	4 537	17 432	31.97	—	360
29268	9039268	340	460	73	183	395	427	2.5	1 432	6 838	4.27	—	750
29368	9039368		540	122	192	430	484	4	3 052	12 554	15.64	—	480
29468	9039468		620	170	201	465	541	6	5 002	18 866	38.98	—	320
