： +86-18560016265 ：info@xsybearing.com
| Quantity: | |
|---|---|

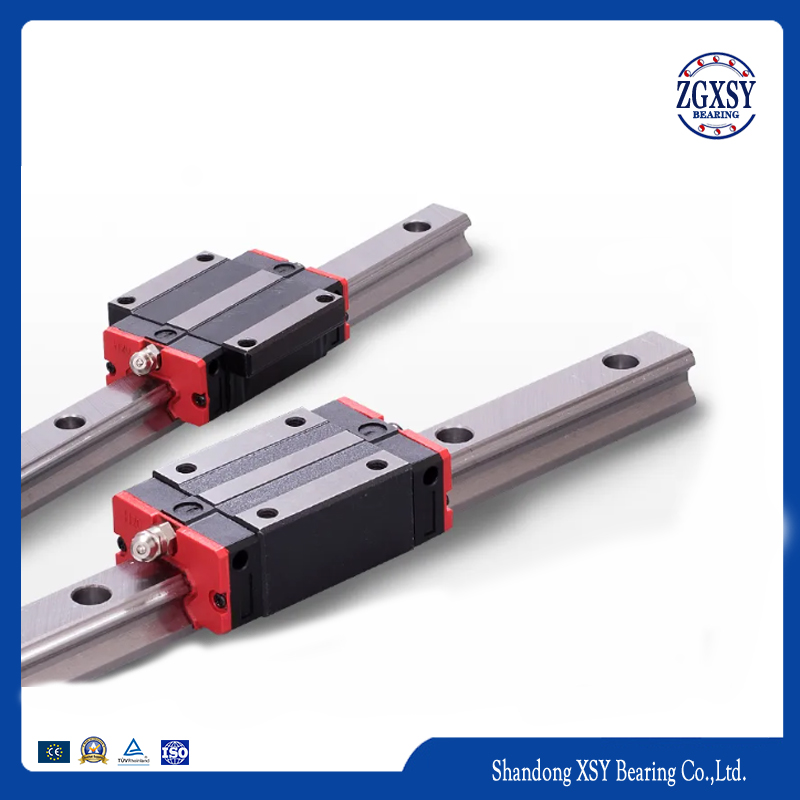

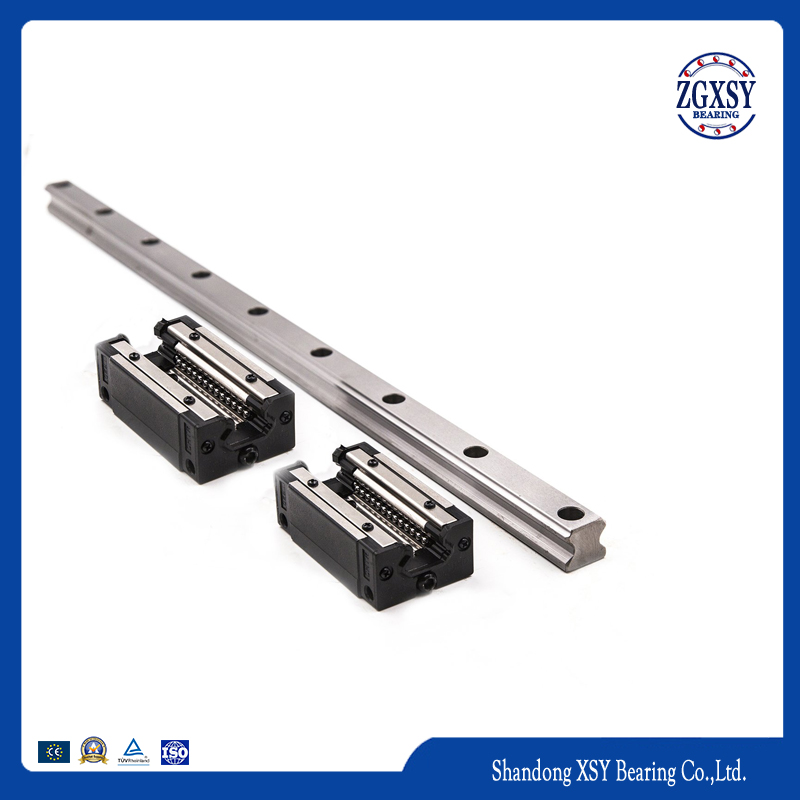

EGH15SA EGH15CA EGH20SA EGH20CA EGH25SA EGH25CA EGH30SA EGH30CA EGH35SA EGH35CA
ZGXSY, OEM, NO BRAND
China
Bearing Steel, GCR 15
EGH Series
12 Months / One Year
CNC Machine, Precision Measuring and Testing Instruments
By International Express or Sea or Railway
1 PC
Product Description:
SA Series: Typically made entirely of stainless steel. The guide rails, sliders, ball bearings, and internal key components are all manufactured from high-quality stainless steel (such as AISI 440C or equivalent). This is a professional series designed for extremely corrosive environments, cleanrooms, or applications requiring compliance with food and pharmaceutical regulations.
CA Series: Typically a standard series with chrome-plated hard shafts. It features high-rigidity guide rails made of high-carbon chromium bearing steel (such as SUJ2), with a hard chrome plating on the surface, and alloy steel for the slider cage and other components. It offers excellent wear resistance and rust prevention, suitable for most industrial environments, and is a cost-effective general-purpose anti-corrosion solution.
| Model No. | Dimensions of Assembly (mm) | Dimensions of Block (mm) | Dimensions of Rail (mm) | Mounting Bolts | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment (kgf·m) | Weight | |||||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | Mxl | T | H2 | H3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | C0(kN) | MR kN·m | MP kN·m | My kN·m | block kg | Rail kg/m | |
| EGH15SA | 24 | 4.5 | 9.5 | 34 | 26 | 4 | - | 23.1 | 41.1 | 14.8 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 15 | 12.5 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 5.35 | 9.4 | 0.08 | 0.04 | 0.04 | 0.09 | 1.25 |
| EGH15CA | 26 | 39.8 | 57.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.1 | 0.1 | 0.15 | |||||||||||||||||||||
| EGH20SA | 28 | 6 | 11 | 42 | 32 | 5 | - | 29 | 51.2 | 18.75 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5x16 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.15 | 2.08 |
| EGH20CA | 32 | 48.1 | 70.3 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.24 | |||||||||||||||||||||
| EGH25SA | 33 | 7 | 12.5 | 48 | 35 | 6.5 | - | 35.5 | 59.7 | 21.9 | 4.55 | 12 | M6x9 | 8 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.4 | 19.5 | 0.23 | 0.12 | 0.12 | 0.25 | 2.67 |
| EGH25CA | 35 | 59 | 83.2 | 16.15 | 16.27 | 32.4 | 0.38 | 0.32 | 0.32 | 0.41 | |||||||||||||||||||||
| EGH30SA | 42 | 10 | 16 | 60 | 40 | 10 | - | 41.5 | 71.9 | 26.75 | 6 | 12 | M8x12 | 9 | 8 | 9 | 28 | 23 | 14 | 12 | 9 | 80 | 20 | M8x25 | 16.42 | 28.1 | 0.4 | 0.21 | 0.21 | 0.45 | 4.35 |
| EGH30CA | 40 | 70 | 100.4 | 21.05 | 23.7 | 47.46 | 0.68 | 0.55 | 0.55 | 0.76 | |||||||||||||||||||||
| EGH35SA | 48 | 11 | 18 | 70 | 50 | 10 | - | 45 | 75 | 28.5 | 7 | 12 | M8x12 | 10 | 8.5 | 8.5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8x25 | 22.66 | 37.38 | 0.56 | 0.31 | 0.31 | 0.66 | 6.14 |
| EGH35CA | 50 | 78 | 108 | 20 | 33.35 | 64.84 | 0.98 | 0.69 | 0.69 | 1.13 | |||||||||||||||||||||
Structural Design Highlights:
All-Stainless Steel Structure: The SA series achieves material uniformity from the inside out, completely avoiding electrochemical corrosion (galvanic corrosion), and possesses excellent chemical corrosion resistance and hygienic easy-cleaning properties.
Chrome-Plated Hard Shaft Technology: The guide rails of the CA series are precisely ground and then coated with a uniform layer of hard chrome, significantly improving wear life and corrosion resistance while maintaining the high-rigidity base of the steel.
Special Lubrication and Sealing: The SA series typically comes standard with food-grade or high-performance synthetic grease and uses more corrosion-resistant sealing materials to ensure long-term stable operation in harsh environments.
Precision Retention: Both material treatment processes effectively resist corrosion and wear in their respective applicable environments, thus ensuring consistent long-term operating accuracy.
Performance and Application:
Excellent Corrosion Resistance: The SA series can withstand moisture, acid and alkali mists, seawater environments, some chemical solvents, and frequent cleaning and disinfection.
Clean and Non-Contaminating: The SA series is stainless and non-shedding, meeting the potential requirements of FDA, USDA, or cleanroom-related specifications.
Application Scenarios: The SA series is specifically designed for food processing machinery, pharmaceutical packaging equipment, semiconductor cleaning equipment, electroplating production lines, marine engineering equipment, and advanced laboratory instruments. The CA series is widely used in CNC machine tools, automated warehouses, general industrial machinery, and humid workshop environments. Linear guide is heavy load linear guide way designed by circular-arc groove and structure optimization are higher over 30% load capacity and rigidity than other similar ball type linear guideway. It features the same load in four directions (up/down/right/left) and self-aligning to absorb installation-error capability.
FAQ:
Q1: Are you factory or trading company?
A: We are factory with most competitive price and high quality.
Q2: Customized accepted?
A: Yes, sure. If that, please send us the drawing of the type with the picture will be most appreciated.
A3: Can I get some samples or more discounts?
A: Yes, just to contact us and we are honored to offer samples to you for checking.
Q4: How about the time of delivery ?
A: For the products in stock, it will be sent out in 1-3 days; Or it will be sent out 3-30 days according to the quantity.
Q5: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q6: How can I get a quotation?
A: Normally, we will quote within 24 hours. If you are in urgent, please give a call or let us know in your email with the details.
We need information bellow:
1.The Model Number/ the detail drawing of non-standard bearing;
2.Quantity;
3.Material;
4.Surface treatment;
5.Any special packing or other requirements.
Our Services:
Our Quality:
Quality is the life. We use only the best quality material to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We support 12 months warranty for all products.
Payment:
We accept payment via TT (Bank transfer), Paypal etc..
We accept bank transfer for large orders. For small order, you'd better pay via Paypal.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
