| Quantity: | |
|---|---|
HGW20HB HGW25HB HGW30HB HGW35HB HGW45HB HGW55HB HGW65HB
ZGXSY, OEM, NO BRAND
China
Bearing Steel
HGW-CB/HB Series
12 Months
Grinding machines Milling machines Lathes Drilling machines Machining centers Electrical discharge machining (EDM) machines Boring machines Wire cutting machines Precision measuring instruments Woodworking machines Handling machines Conveying devices
By International Express or Sea or Railway
1 PC
Product Description:
HGW is a miniature linear guide designed for applications with limited space, requiring lightweight construction and high precision.
CB Series: Represents flanged linear guides. The mounting holes are located on the flanges on both sides of the guide. This is the most common compact design, offering easy installation and saving vertical space.
HB Series: Represents square (or straight) linear guides. The mounting holes are located on the top surface of the guide, without protruding flanges on the sides. This design provides a larger mounting contact area and sometimes better rigidity, but the height is usually slightly greater than that of the equivalent CB series.
| Model No. | Dimensions of Assembly [mm] | Dimensions of Block [mm] | Dimensions of Rail [mm] | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment | Weight | |||||||||||||||||||||||||
| H | H₁ | N | W | B | B₁ | C | L₁ | L | K₁ | K₂ | G | M | T | T₁ | T₂ | H₂ | H₃ | WR | HR | D | h | d | P | E | [mm] | C[kN] | C0[kN] | MR [kN-m] | MP [kN-m] | MY [kN-m] | Block [kg] | Rail [kg/m] | |
| HGW15CB | 24 | 4.3 | 16 | 47 | 38 | 4.5 | 30 | 39.4 | 61.4 | 8 | 4.85 | 5.3 | 4.5 | 6 | 8.9 | 6.95 | 3.95 | 3.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 14.7 | 23.47 | 0.12 | 0.14 | 0.14 | 0.17 | 1.45 |
| HGW20CB | 30 | 4.6 | 21.5 | 63 | 53 | 5 | 40 | 50.5 | 77.5 | 10.25 | 6 | 12 | 6 | 8 | 10 | 9.5 | 6 | 6 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5x16 | 27.1 | 36.68 | 0.27 | 0.28 | 0.28 | 0.4 | 2.21 |
| HGW20HB | 65.2 | 92.2 | 17.6 | 32.7 | 47.96 | 0.35 | 0.48 | 0.48 | 0.52 | ||||||||||||||||||||||||
| HGW25CB | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 58 | 84 | 10.7 | 6 | 12 | 7 | 8 | 14 | 10 | 6 | 5 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 34.9 | 52.82 | 0.42 | 0.49 | 0.49 | 0.59 | 3.21 |
| HGW25HB | 78.6 | 104.6 | 21 | 42.2 | 69.07 | 0.56 | 0.73 | 0.73 | 0.8 | ||||||||||||||||||||||||
| HGW30CB | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 70 | 97.4 | 14.25 | 6 | 12 | 9 | 8.5 | 16 | 10 | 6.5 | 10.8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8x25 | 48.5 | 71.87 | 0.66 | 0.7 | 0.7 | 1.09 | 4.47 |
| HGW30HB | 93 | 120.4 | 25.75 | 58.6 | 93.99 | 0.88 | 1.23 | 1.23 | 1.44 | ||||||||||||||||||||||||
| HGW35CB | 48 | 7.5 | 33 | 100 | 82 | 9 | 62 | 80 | 112.4 | 14.6 | 7 | 12 | 9 | 10.1 | 18 | 13 | 9 | 12.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8x25 | 64.6 | 93.88 | 1.16 | 1.09 | 1.09 | 1.56 | 6.3 |
| HGW35HB | 105.8 | 138.2 | 27.5 | 77.9 | 122.77 | 1.54 | 2.02 | 2.02 | 2.06 | ||||||||||||||||||||||||
| HGW45CB | 60 | 9.5 | 37.5 | 120 | 100 | 10 | 80 | 97 | 139.4 | 13 | 10 | 12.9 | 11 | 15.1 | 22 | 15 | 8.5 | 20.5 | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12x35 | 103.8 | 146.71 | 1.98 | 2.35 | 2.35 | 2.79 | 10.41 |
| HGW45HB | 128.8 | 171.2 | 28.9 | 125.3 | 191.85 | 2.63 | 4.45 | 4.45 | 3.69 | ||||||||||||||||||||||||
| HGW55CB | 70 | 13 | 43.5 | 140 | 116 | 12 | 95 | 117.7 | 166.7 | 17.35 | 11 | 12.9 | 14 | 17.5 | 26.5 | 17 | 12 | 19 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 153.2 | 211.23 | 3.69 | 3.684 | 3.684 | 4.52 | 15.08 |
| HGW55HB | 155.8 | 204.8 | 36.4 | 184.9 | 276.23 | 4.88 | 6.65 | 6.65 | 5.96 | ||||||||||||||||||||||||
| HGW65CB | 90 | 15 | 53.5 | 170 | 142 | 14 | 110 | 144.2 | 200.2 | 23.1 | 14 | 12.9 | 16 | 25 | 37.5 | 23 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 213.2 | 287.48 | 6.65 | 5.87 | 5.87 | 9.17 | 21.18 |
| HGW65HB | 203.6 | 259.6 | 52.8 | 277.8 | 420.17 | 9.38 | 12.574 | 12.574 | 12.89 | ||||||||||||||||||||||||
Advantages and Features:
Advantages:
1.With more than 35 years experiences of producing and R&D bearings.
2. The OEM and ODM are available, we can produce bearings according to your drawing.
3. Our products have been exported to about thirty country/areas, and enjoyed a high reputation on the domestic and overseas market.
4. Professional after-sales team.
Features:
1. Guiding accuracy: the position accuracy of the moving parts when they move along the guide rail (such as straightness, parallelism).
2. Carrying capacity: the ability to withstand vertical and horizontal loads.
3. Wear resistance: the ability to maintain accuracy after long-term use, which is related to the material and lubrication method.
4. Friction coefficient: affects the smoothness of movement and energy consumption (the friction coefficient of rolling guides is much smaller than that of sliding guides).
5. Stiffness: the ability to resist deformation, which is crucial for high-precision equipment.
Applications:
Guide bearings are widely used in various equipment that require precise motion control due to their high precision, low friction and high load-bearing characteristics: industrial automation equipment, CNC machine tools and processing equipment, precision measuring and testing instruments, medical equipment and laboratory equipment, transportation and rail transportation, 3C and precision manufacturing fields, etc.

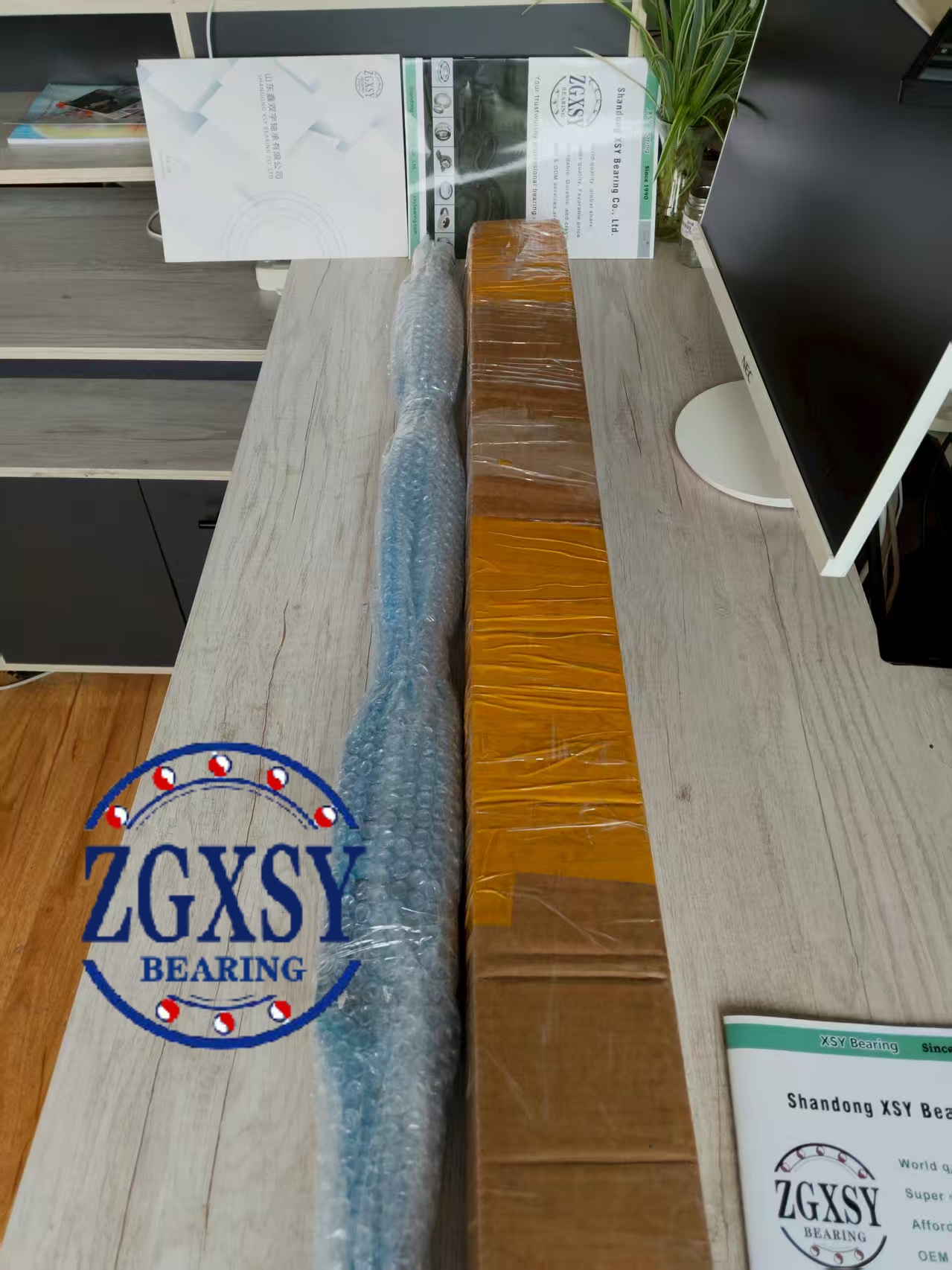

Package:
*industrial pakage+outer carton+pallets
*sigle box+outer carton+pallets
*Tube package+middle box+outer carton+pallets
*According to your requirements
Transportation:
1. International Express
2. By air plant
3. International Seaborne shipping
4. International railway transportation
FAQ:
Q1: What color you can do for powder coating? The thickness for powder coat?
A: We can do any color for powder coat as long as you can provide the color sample. Our normally powder coating thickness is 60-80um.
Q2: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q3: What's the packing way?
A: Commonly we use plastic film, kraft paper and boxed, also we can make as per customers' requirements
Q4: How to shipping?
A: By sea, air or rail. A small amount can be sent by courier (DHL, FEDEX, UPS, NTN etc.). Bulk shipped bu sea can be accepted.
Q5: Do you inspect the finished products?
A: Yes, we will do inspection according to lSO standard and ruled by our QC staff.
