4-Row Circular Arc Groove Design HGL-CA/HA Series Linear Guideway

Product Description:

The HGL product line is renowned in the automation industry for its high cost-effectiveness, reliability, and wide applicability.

CA Series: Typically a standard precision series, representing a general-purpose and economical option. Suitable for most industrial automation applications where extreme precision and rigidity are not required, such as handling equipment, laser cutting machines, packaging machinery, and general CNC equipment.

HA Series: Typically a high-precision series. It features higher standards in manufacturing processes, material selection, and precision testing, resulting in superior running smoothness, positioning accuracy, and holding accuracy. Suitable for high-speed, high-precision equipment such as precision measuring instruments, semiconductor equipment, high-end CNC machine tools, and medical equipment.

Model No.	Dimensions of Assembly (mm)			Dimensions of Block (mm)													Dimensions of Rail (mm)							Mounting Bolts	Basic Dynamic Load Rating	Basic Static Load Rating	Static Rated Moment (kgf·m)			Weight
	H	H1	N	W	B	B1	C	L1	L	K1	K2	G	Mxl	T	H2	H3	WR	HR	D	h	d	P	E	(mm)	C(kN)	C0(kN)	MR kN·m	MP kN·m	My kN·m	block kg	Rail kg/m
HGL15CA	24	4.3	9.5	34	26	4	26	39.5	61.4	10	4.85	5.3	M4x4	6	3.95	3.7	15	15	7.5	5.3	4.5	60	20	M4x16	11.38	16.97	0.12	0.1	0.1	0.14	1.45
HGL25CA	36	5.5	12.5	48	35	6.5	35	58	84	15.7	6	12	M6x6	8	6	5	23	22	11	9	7	60	20	M6x20	26.48	36.49	0.42	0.33	0.33	0.42	3.21
HGL25HA							50	78.6	104.6	18.5															32.75	49.44	0.56	0.57	0.57	0.57
HGL30CA	42	6	16	60	40	10	40	70	98.4	20.25	6	12	M8x10	8.5	6.5	10.8	28	26	14	12	9	80	20	M8x25	38.74	52.19	0.66	0.53	0.53	0.78	4.47
HGL30HA							60	93	121.4	21.75															47.27	69.16	0.88	0.92	0.92	1.03
HGL35CA	48	7.5	18	70	50	10	50	80	112.4	20.6	7	12	M8x12	10.2	9	12.6	34	29	14	12	9	80	20	M8x25	49.52	69.16	1.16	0.81	0.81	1.14	6.3
HGL35HA							72	105.8	138.2	22.5															60.21	91.63	1.54	1.4	1.4	1.52
HGL45CA	60	9.5	20.5	86	60	13	60	97	137.4	23	10	12.9	M10x17	16	8.5	20.5	45	38	20	17	14	105	22.5	M12x35	77.57	102.71	1.98	1.55	1.55	2.08	10.41
HGL45HA							80	128.8	169.2	28.9															94.54	136.46	2.63	2.68	2.68	2.75
HGL55CA	70	13	23.5	100	75	12.5	75	117.7	166.7	27.35	11	12.9	M12x18	17.5	12	19	53	44	23	20	16	120	30	M14x45	114.44	148.33	3.69	2.64	2.64	3.25	15.08
HGL55HA							95	155.8	204.8	36.4															139.35	196.2	4.88	4.57	4.57	4.27

Advantages:

1. High Rigidity and High Load Capacity: Four-way equal load design, capable of withstanding radial, anti-radial, and lateral forces.

2. High Precision and Smoothness: Optimized recirculation system and groove design ensure smooth slider operation, low vibration, and low noise.

3. Long Service Life and High Reliability: Made of high-quality steel, hardened, and equipped with excellent dustproof sealing (standard with oil scraper and end cap seals) to prevent dust and debris from entering.

4.  Interchangeability: High interchangeability of dimensions with mainstream brands, facilitating equipment modification and maintenance.

5. Wide Range of Models: Available in various sizes from miniature to large, meeting different load and space requirements.

Applications:

CNC machine tools, machining centers

Laser cutting/welding/marking machines

Automated production lines, handling robots (gantry robots)

Precision measuring equipment

Printing equipment, packaging machinery

Medical equipment

Electronic and semiconductor equipment

Package and Transportation:

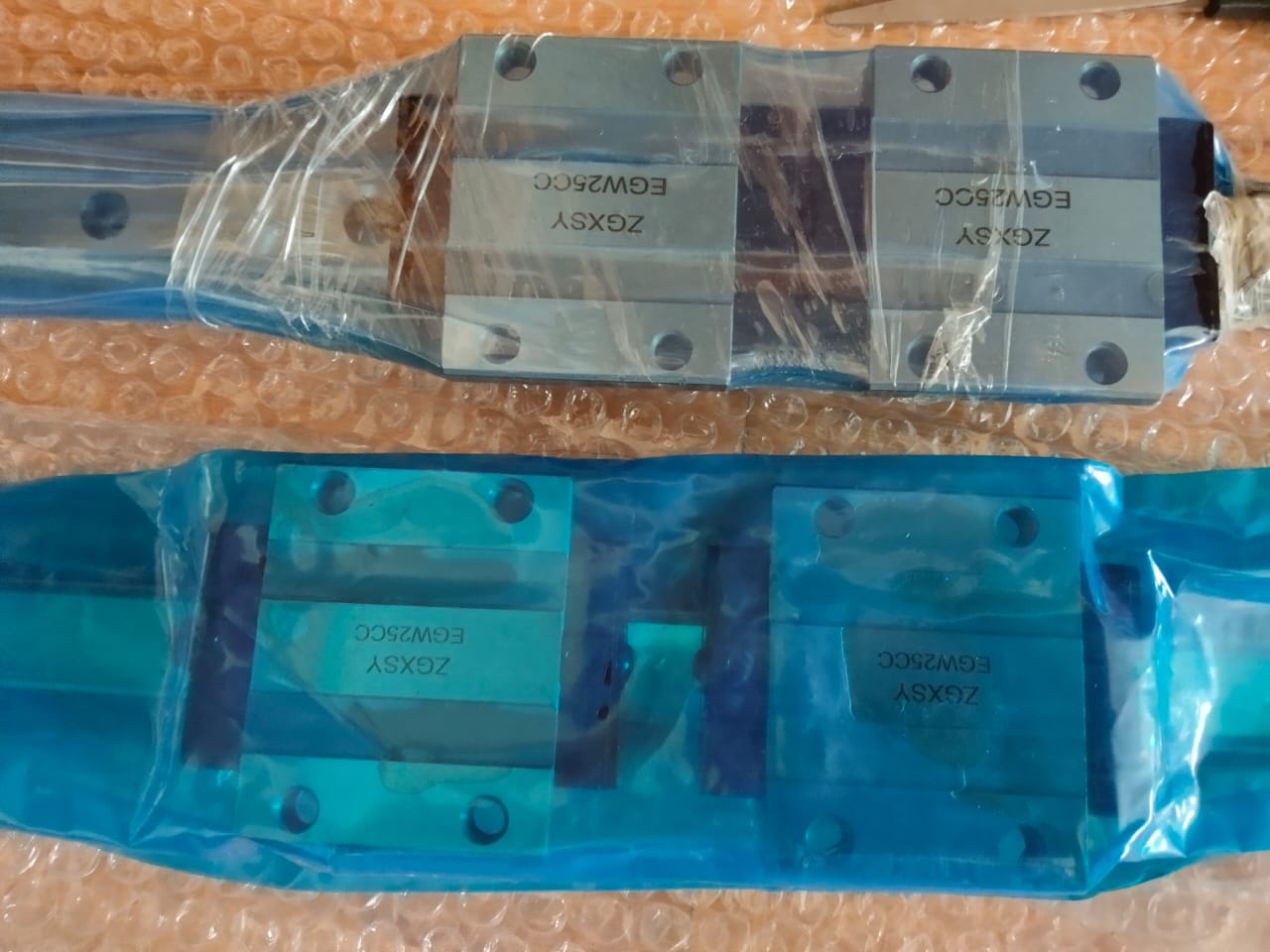

Package:

*industrial pakage+outer carton+pallets
*sigle box+outer carton+pallets
*Tube package+middle box+outer carton+pallets
*According to your requirements

Transportation:

1. International Express
2. By air plant
3. International Seaborne shipping
4. International railway transportation
