： +86-18560016265 ：info@xsybearing.com
| Quantity: | |
|---|---|
MGN2C MGN3C MGN3H MGN7C MGN7H MGN9C MGN9H MGN12C MGN12H MGN15C MGN15H
ZGXSY, OEM, WORD FAMOUS BRAND, NO BRAND
China
Bearing Steel, GCR 15
WEH-CA Series
12 Months / One Year
Desktop 3D printers (core motion components), small CNC engraving machines/PCB engraving machines, laser engraving/cutting machines, precision optical adjustment stages, small automated testing equipment, robotic joints, models and maker projects.
By International Express or Sea or Railway
1 PC
Product Description:

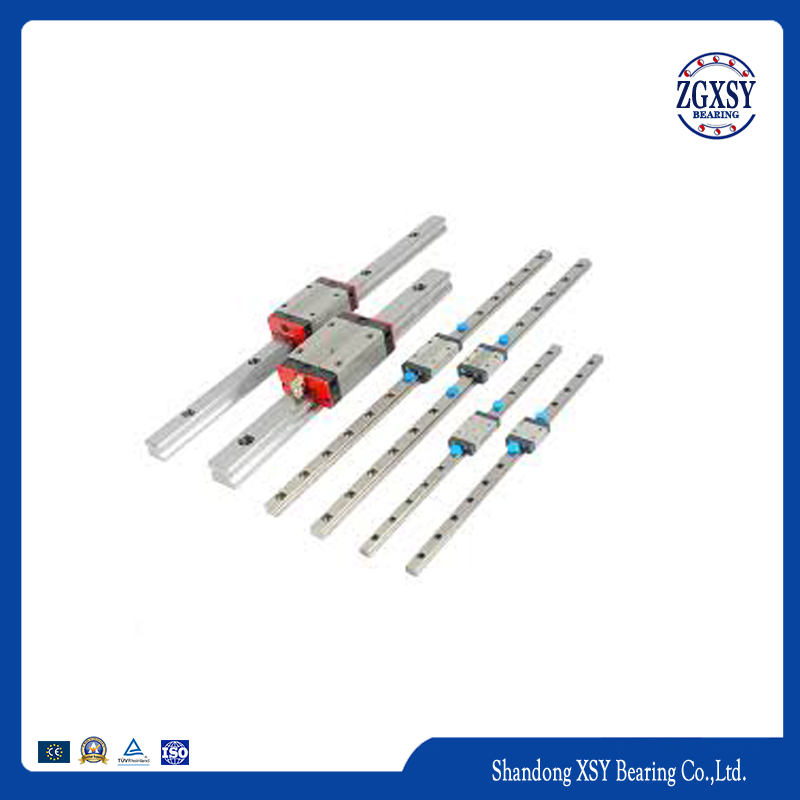

The MGN series is a common naming convention for miniaturized, compact linear guides (similar to the standard MGN and the high-profile MGH), and is particularly popular in 3D printing, desktop CNC machines, and small automation equipment. The letters C and H typically denote different slider heights or structural configurations.
MGN-C series: Usually refers to a compact, standard-height slider. Its design balances load capacity and compactness, making it the most widely used miniature linear guide model.
MGN-H series: Usually refers to a high-profile/high-rigidity slider. Its slider height (H dimension) is significantly greater than the C-type with the same rail width, allowing for more or larger ball bearings internally, thus providing higher load capacity, rigidity, and torque resistance, but occupying more vertical space.
Specification:
| Model No. | Dimensions of Assembly [mm] | Dimensions of Block [mm] | Dimensions of Rail [mm] | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment | Weight | |||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | Lmax | G | Gn | M×l | H2 | WR | HR | D | h | d | P | E | [mm] | C(kN) | C0(kN) | MR(N·m) | MP(N·m) | MY(N·m) | Block(kg) | Rail(kg/m) | |
| MGN2C | 3.2 | 0.7 | 2 | 6 | - | 3 | 4 | 9.4 | 12.5 | 12.5 | - | - | M1.4 THRU | - | 2 | 2 | M1 THRU | - | - | 8 | 4 | M1 | 0.22 | 0.4 | 0.42 | 0.63 | 0.63 | 0.001 | 0.03 |
| MGN3C | 4 | 1 | 2.5 | 8 | - | 4 | 3.5 | 7 | 11.3 | 11.3 | - | - | M1.6x1.3 | - | 3 | 2.6 | M1.6 THRU | 10 | 5 | M1.6 | 0.29 | 0.44 | 0.7 | 0.5 | 0.5 | 0.001 | 0.05 | ||
| MGN3H | 5.5 | 11 | 15.3 | 15.3 | - | M2x1.3 | 0.39 | 0.68 | 1 | 1.3 | 1.3 | 0.002 | |||||||||||||||||
| MGN7C | 8 | 1.5 | 5 | 17 | 12 | 2.5 | 8 | 13.5 | 22.5 | 23.1 | Ø1.2 | M2x2.5 | 1.5 | 7 | 4.8 | 4.2 | 2.3 | 2.4 | 15 | 5 | M2x6 | 0.98 | 1.24 | 4.7 | 2.84 | 2.84 | 0.01 | 0.22 | |
| MGN7H | 13 | 21.8 | 30.8 | 31.4 | 1.37 | 1.96 | 7.64 | 4.8 | 4.8 | 0.015 | |||||||||||||||||||
| MGN9C | 10 | 2 | 5.5 | 20 | 15 | 2.5 | 10 | 18.9 | 28.9 | 29.9 | Ø1.4 | M3x3 | 1.8 | 9 | 6.5 | 6 | 3.5 | 3.5 | 20 | 7.5 | M3x8 | 1.86 | 2.55 | 11.76 | 7.35 | 7.35 | 0.016 | 0.38 | |
| MGN9H | 16 | 29.9 | 39.9 | 40.9 | 2.55 | 4.02 | 19.6 | 18.62 | 18.62 | 0.026 | |||||||||||||||||||
| MGN12C | 13 | 3 | 7.5 | 27 | 20 | 3.5 | 15 | 21.7 | 34.7 | 35.1 | Ø2 | M3x3.5 | 2.5 | 12 | 8 | 6 | 4.5 | 3.5 | 25 | 10 | M3x8 | 2.84 | 3.92 | 25.48 | 13.72 | 13.72 | 0.034 | 0.65 | |
| MGN12H | 20 | 32.4 | 45.4 | 45.8 | 3.72 | 5.88 | 38.22 | 36.26 | 36.26 | 0.054 | |||||||||||||||||||
| MGN15C | 16 | 4 | 8.5 | 32 | 25 | 3.5 | 20 | 26.7 | 42.1 | 42.7 | 4.5 | M3 | M3x4 | 3 | 15 | 10 | 6 | 4.5 | 3.5 | 40 | 15 | M3x10 | 4.61 | 5.59 | 45.08 | 21.56 | 21.56 | 0.059 | 1.06 |
| MGN15H | 25 | 43.4 | 58.8 | 59.4 | 6.37 | 9.11 | 73.5 | 57.82 | 57.82 | 0.092 | |||||||||||||||||||
Advantages:
Advantages: Extremely compact, lightweight, standardized, and cost-effective.
Performance and Applications:
Limitations: Travel distance is limited by the length of a single guide rail, typically not suitable for ultra-long strokes; load capacity is lower than large industrial guide rails.
Typical applications: Desktop 3D printers (core motion components), small CNC engraving machines/PCB engraving machines, laser engraving/cutting machines, precision optical adjustment stages, small automated testing equipment, robotic joints, models and maker projects.
Our Services:
Our Quality:
Quality is the life. We use only the best quality material to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We support 12 months warranty for all products.
Payment:
We accept payment via TT (Bank transfer), Paypal etc..
We accept bank transfer for large orders. For small order, you'd better pay via Paypal.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
FAQ:
Q1: Are you factory or trading company?
A: We are factory with the most competitive price and high quality.
Q2: Customized accepted?
A: Yes, sure. If that, please send us the drawing of the type with the picture will be most appreciated.
A3: Can I get some samples or more discounts?
A: Yes, just to contact us and we are honored to offer samples to you for checking.
Q4: How about the time of delivery?
A: For the products in stock, it will be sent out in 1-3 days; Or it will be sent out 3-30 days according to the quantity.
Q5: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q6: How can I get a quotation?
A: Normally, we will quote within 24 hours. If you are in urgent, please give a call or let us know in your email with the details.
We need information bellow:
1.The Model Number/ the detail drawing of non-standard bearing;
2.Quantity;
3.Material;
4.Surface treatment;
5.Any special packing or other requirements.
Q7: Where is your factory?
A: Our factory is located in Linqing City, Shandong Province, China. It only 2.5 hours to Jinan Yaoqiang Airport, we can provide business vehicle to take you coming and departure.
