| Quantity: | |
|---|---|
CGW15CA CGW20CA CGW20HA CGW25CA CGW25HA CGW30CA CGW30HA CGW35CA CGW35HA CGW45CA CGW45HA
ZGXSY, OEM, WORD FAMOUS BRAND, NO BRAND
China
Bearing Steel, GCR 15
WEH-CA Series
12 Months / One Year
Machine tool structures Industrial automation platforms Linear positioning tables Assembly and handling equipment
By International Express or Sea or Railway
1 PC
Product Description:

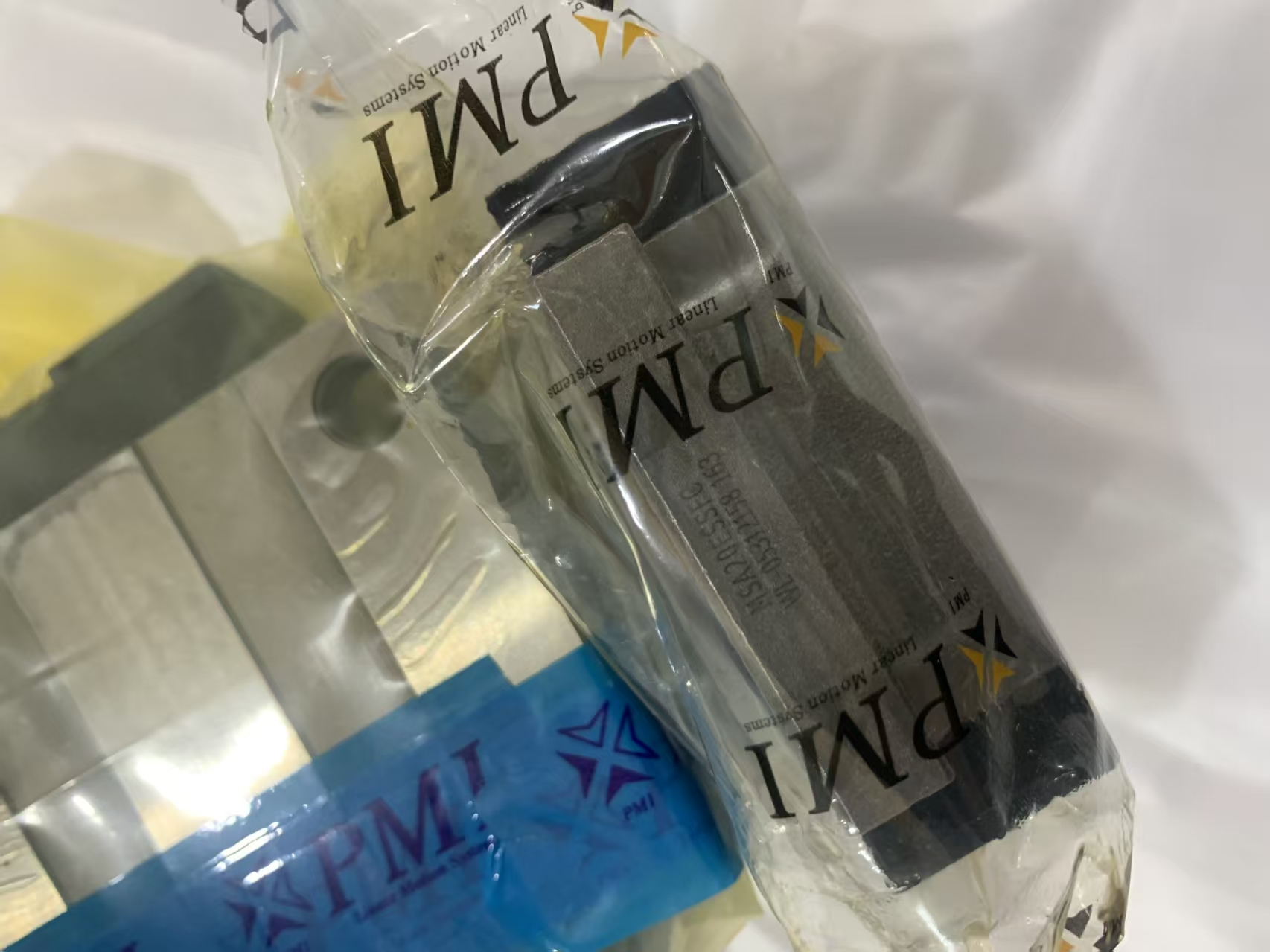

CGW-CA / HA Series Direct Linear Guide is designed with a compact wide-body configuration to achieve strong resistance to overturning forces while maintaining a reduced installation height. The series focuses on providing stable linear guidance for equipment that requires both space efficiency and enhanced moment control.
Specification:
| Model No. | Dimensions of Assembly (mm) | Dimensions of Block (mm) | Dimensions of Rail (mm) | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment | Weight | ||||||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | G | K1 | K2 | T | T1 | H2 | H3 | M | WR | HR | D | h | d | P | E | (mm) | C(kN) | C0(kN) | MR kN·m | MP kN·m | My kN·m | Block kg | Rail kg/m | |
| CGW15CA | 24 | 4.1 | 16 | 47 | 38 | 4.5 | 30 | 39.6 | 58.2 | 6 | 8.8 | 4.25 | 6 | 6.5 | 3.8 | 3.8 | M5 | 15 | 16.2 | 7.5 | 5.9 | 4.5 | 60 | 20 | M4x17 | 14.7 | 23.47 | 0.19 | 0.14 | 0.14 | 0.14 | 1.58 |
| CGW20CA | 30 | 4.65 | 21.5 | 63 | 53 | 5 | 40 | 52.5 | 74.9 | 6 | 10.45 | 5.5 | 6.5 | 7.7 | 3.7 | 4 | M6 | 20 | 20.55 | 9.5 | 8.5 | 6 | 60 | 20 | M5x19 | 27.1 | 36.68 | 0.37 | 0.28 | 0.28 | 0.36 | 2.48 |
| CGW20HA | 30 | 4.65 | 21.5 | 63 | 53 | 5 | 40 | 68.5 | 90.9 | 6 | 18.45 | 5.5 | 6.5 | 7.7 | 3.7 | 4 | M6 | 20 | 20.55 | 9.5 | 8.5 | 6 | 60 | 20 | 32.7 | 47.96 | 0.48 | 0.48 | 0.48 | 0.47 | 2.48 | |
| CGW25CA | 36 | 6.1 | 23.5 | 70 | 57 | 6.5 | 45 | 81 | 84 | 13 | 12.4 | 5 | 7 | 9.3 | 6 | 5.1 | M8 | 23 | 24.25 | 11 | 9 | 7 | 60 | 20 | M6x22 | 34.9 | 52.82 | 0.6 | 0.49 | 0.49 | 0.49 | 3.38 |
| CGW25HA | 36 | 6.1 | 23.5 | 70 | 57 | 6.5 | 45 | 78.4 | 101.4 | 13 | 21.1 | 5 | 7 | 9.3 | 6 | 5.1 | M8 | 23 | 24.25 | 11 | 9 | 7 | 60 | 20 | 42.2 | 69.07 | 0.74 | 0.73 | 0.73 | 0.73 | 3.38 | |
| CGW30CA | 42 | 7 | 31 | 90 | 72 | 9 | 52 | 69 | 97.4 | 13 | 13.75 | 8.7 | 10.5 | 12 | 6.7 | 6.7 | M10 | 28 | 28.35 | 14 | 12 | 9 | 80 | 20 | M8x25 | 48.5 | 71.87 | 0.95 | 0.7 | 0.7 | 0.7 | 5.1 |
| CGW30HA | 42 | 7 | 31 | 90 | 72 | 9 | 52 | 91.5 | 119.9 | 13 | 25 | 8.7 | 10.5 | 12 | 6.7 | 6.7 | M10 | 28 | 28.35 | 14 | 12 | 9 | 80 | 20 | 58.6 | 93.99 | 1.35 | 1.23 | 1.23 | 1.23 | 5.1 | |
| CGW35CA | 48 | 7.6 | 33 | 100 | 82 | 9 | 62 | 79 | 111.4 | 13 | 16.6 | 7 | 10.1 | 13.1 | 9 | 8.3 | M10 | 34 | 31.85 | 14 | 12 | 9 | 80 | 30 | M8x28 | 64.6 | 93.88 | 1.73 | 1.09 | 1.09 | 1.09 | 7.14 |
| CGW35HA | 48 | 7.6 | 33 | 100 | 82 | 9 | 62 | 103.4 | 135.8 | 13 | 28.8 | 7 | 10.1 | 13.1 | 9 | 8.3 | M10 | 34 | 31.85 | 14 | 12 & 9 | 80 | 20 | 22.5 | 77.9 | 122.77 | 2.46 | 2.02 | 2.02 | 2.02 | 7.14 | |
| CGW45CA | 60 | 9.7 | 37.5 | 120 | 100 | 10 | 80 | 97.2 | 137.6 | 13 | 13 | 8.7 | 13.5 | 15 | 8.5 | 8.5 | M12 | 45 | 39.85 | 20 | 17 | 14 | 105 | 22.5 | M12x37 | 103.8 | 146.71 | 3.56 | 2.35 | 2.35 | 2.35 | 11.51 |
| CGW45HA | 60 | 9.7 | 37.5 | 120 | 100 | 10 | 80 | 133.6 | 174 | 13 | 31.2 | 8.7 | 13.5 | 15 | 8.5 | 8.5 | M12 | 45 | 39.85 | 20 | 17 & 14 | 105 | 22.5 | 22.5 | 125.58 | 191.85 | 5.05 | 4.45 | 4.45 | 4.45 | 3 | |
Advantages:
1. Compact wide-body stability
Wide support geometry improves resistance to tilting without increasing rail length.
2. Enhanced anti-moment performance
Effectively handles pitch and roll moments in confined installations.
3. Stable guidance under offset loads
Maintains smooth linear motion even when the load center is not symmetrical.
4. Optimized mounting efficiency
Suitable for flat and limited installation spaces.
5. Reliable mechanical consistency
Designed for long-term industrial operation with stable behavior.
Features:
1. Compact wide-type guide structure
2. Improved resistance to overturning torque
3. Stable linear displacement in limited space
4. Optimized block width-to-height ratio
5. Designed for space-restricted assemblies
Applications:
1. Compact automation platforms
2. Precision assembly equipment
3. Industrial positioning units
4. Motion bases with limited height
5. Integrated mechanical modules
6. Structural guiding components
Our Services:
Our Quality:
Quality is the life. We use only the best quality material to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We support 12 months warranty for all products.
Payment:
We accept payment via TT (Bank transfer), Paypal etc..
We accept bank transfer for large orders. For small order, you'd better pay via Paypal.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
FAQ:
Q1: Are you factory or trading company?
A: We are factory with the most competitive price and high quality.
Q2: Customized accepted?
A: Yes, sure. If that, please send us the drawing of the type with the picture will be most appreciated.
A3: Can I get some samples or more discounts?
A: Yes, just to contact us and we are honored to offer samples to you for checking.
Q4: How about the time of delivery?
A: For the products in stock, it will be sent out in 1-3 days; Or it will be sent out 3-30 days according to the quantity.
Q5: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q6: How can I get a quotation?
A: Normally, we will quote within 24 hours. If you are in urgent, please give a call or let us know in your email with the details.
We need information bellow:
1.The Model Number/ the detail drawing of non-standard bearing;
2.Quantity;
3.Material;
4.Surface treatment;
5.Any special packing or other requirements.
Q7: Where is your factory?
A: Our factory is located in Linqing City, Shandong Province, China. It only 2.5 hours to Jinan Yaoqiang Airport, we can provide business vehicle to take you coming and departure.
