： +86-18560016265 ：info@xsybearing.com
| Quantity: | |
|---|---|
CGL15CA CGL25CA CGL25HA CGL30CA CGL30HA CGL35CA CGL35HA CGL45CA CGL45HA
ZGXSY, OEM, WORD FAMOUS BRAND, NO BRAND
China
Bearing Steel, GCR 15
WEH-CA Series
12 Months / One Year
Machine tool structures Industrial automation platforms Linear positioning tables Assembly and handling equipment
By International Express or Sea or Railway
1 PC
Product Description:

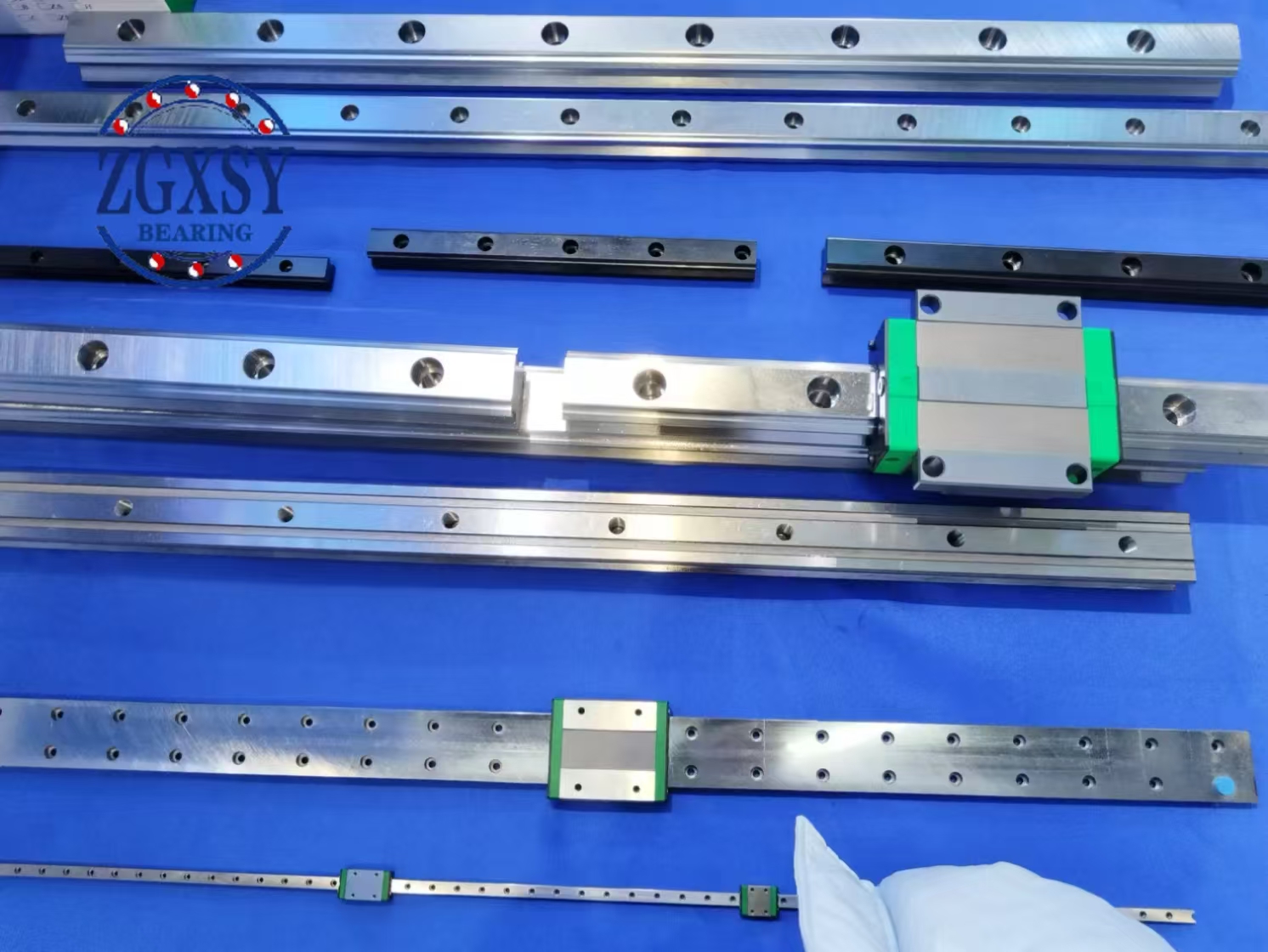

CGL-CA / HA Series Direct Linear Guide is designed for applications requiring extended travel length and consistent guiding accuracy. The series emphasizes structural alignment and straightness retention over long strokes, making it ideal for linear motion systems where smooth guidance and positional consistency must be maintained throughout the entire travel range.
Specification:
| Model No. | Dimensions of Assembly (mm) | Dimensions of Block (mm) | Dimensions of Rail (mm) | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment (kgf·m) | Weight | |||||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | G | K1 | K2 | T | H2 | H3 | Mxl | WR | HR | D | h | d | P | E | [mm] | C(kN) | C0(kN) | MR kN·m | MP kN·m | My kN·m | Block kg | Rail kg/m | |
| CGL15CA | 24 | 4.1 | 9.5 | 34 | 26 | 4 | 26 | 39.6 | 58.2 | 6 | 10.8 | 4.25 | 6 | 3.8 | 3.8 | M4x6 | 15 | 16.2 | 7.5 | 5.9 | 4.5 | 60 | 20 | M4x17 | 14.7 | 23.47 | 0.19 | 0.14 | 0.14 | 0.11 | 1.58 |
| CGL25CA | 36 | 6.1 | 12.5 | 48 | 35 | 6.5 | 35 | 61 | 84 | 13 | 17.4 | 5 | 8 | 6 | 5.1 | M6x8 | 23 | 24.25 | 11 | 9 | 7 | 60 | 20 | M6x22 | 34.9 | 52.82 | 0.6 | 0.49 | 0.49 | 0.37 | 3.38 |
| CGL25HA | 36 | 6.1 | 12.5 | 48 | 35 | 6.5 | 50 | 78.4 | 101.4 | 13 | 18.6 | 5 | 8 | 6 | 5.1 | M6x8 | 23 | 24.25 | 11 | 9 | 7 | 60 | 20 | 42.2 | 69.07 | 0.74 | 0.73 | 0.73 | 0.47 | 3.38 | |
| CGL30CA | 42 | 7 | 16 | 60 | 40 | 10 | 40 | 69 | 97.4 | 13 | 19.75 | 8.7 | 9.5 | 6.7 | 6.7 | M8x10 | 28 | 28.35 | 14 | 12 | 9 | 80 | 20 | M8x25 | 48.5 | 71.87 | 0.95 | 0.7 | 0.7 | 0.61 | 5.1 |
| CGL30HA | 42 | 7 | 16 | 60 | 40 | 10 | 60 | 91.5 | 119.9 | 13 | 21 | 8.7 | 9.5 | 6.7 | 6.7 | M8x10 | 28 | 28.35 | 14 | 12 | 9 | 80 | 20 | 58.6 | 93.99 | 1.35 | 1.23 | 1.23 | 0.82 | 5.1 | |
| CGL35CA | 48 | 7.6 | 18 | 70 | 50 | 10 | 50 | 79 | 111.4 | 13 | 22.6 | 7 | 10.2 | 9 | 8.3 | M8x13 | 34 | 31.85 | 14 | 12 | 9 | 80 | 20 | M8x28 | 64.6 | 93.88 | 1.73 | 1.09 | 1.09 | 0.93 | 7.14 |
| CGL35HA | 48 | 7.6 | 18 | 70 | 50 | 10 | 72 | 103.4 | 135.8 | 13 | 23.8 | 7 | 10.2 | 9 | 8.3 | M8x13 | 34 | 31.85 | 14 | 12 | 9 | 80 | 20 | 77.9 | 122.77 | 2.46 | 2.02 | 2.02 | 1.22 | 7.14 | |
| CGL45CA | 60 | 9.7 | 20.5 | 86 | 60 | 13 | 60 | 97.2 | 137.6 | 13 | 23 | 8.7 | 16 | 8.5 | 8.5 | M10x17 | 45 | 39.85 | 20 | 17 | 14 | 105 | 22.5 | M12x37 | 103.8 | 146.71 | 3.56 | 2.35 | 2.35 | 1.72 | 11.51 |
| CGL45HA | 60 | 9.7 | 20.5 | 86 | 60 | 13 | 80 | 133.6 | 174 | 13 | 31.2 | 8.7 | 16 | 8.5 | 45 | 39.85 | 20 | 17 | 14 | 105 | 22.5 | 125.58 | 191.85 | 5.05 | 4.45 | 4.45 | 2.39 | 11.51 | |||
Advantages:
1. Excellent long-stroke guidance stability
Maintains straight motion accuracy over extended travel distances.
2. Uniform motion behavior
Ensures consistent guiding performance from start to end of stroke.
3. Optimized structural alignment
Reduces cumulative deviation in long linear assemblies.
4. Reliable load guidance
Provides steady support for equipment with distributed loads.
5. Suitable for continuous linear movement
Designed for systems operating with frequent or prolonged travel cycles.
Features:
1. Long-stroke optimized guide structure
2. Consistent linear alignment design
3. Stable carriage movement over full travel
4. Rail profile optimized for straightness retention
5. Designed for extended motion assemblies
Applications:
1. Long travel automation equipment
2. Linear transfer units
3. Conveyor positioning systems
4. Industrial motion platforms
5. Assembly lines with extended stroke requirements
6. Mechanical guiding frameworks
Our Services:
Our Quality:
Quality is the life. We use only the best quality material to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We support 12 months warranty for all products.
Payment:
We accept payment via TT (Bank transfer), Paypal etc..
We accept bank transfer for large orders. For small order, you'd better pay via Paypal.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
FAQ:
Q1: Are you factory or trading company?
A: We are factory with the most competitive price and high quality.
Q2: Customized accepted?
A: Yes, sure. If that, please send us the drawing of the type with the picture will be most appreciated.
A3: Can I get some samples or more discounts?
A: Yes, just to contact us and we are honored to offer samples to you for checking.
Q4: How about the time of delivery?
A: For the products in stock, it will be sent out in 1-3 days; Or it will be sent out 3-30 days according to the quantity.
Q5: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q6: How can I get a quotation?
A: Normally, we will quote within 24 hours. If you are in urgent, please give a call or let us know in your email with the details.
We need information bellow:
1.The Model Number/ the detail drawing of non-standard bearing;
2.Quantity;
3.Material;
4.Surface treatment;
5.Any special packing or other requirements.
Q7: Where is your factory?
A: Our factory is located in Linqing City, Shandong Province, China. It only 2.5 hours to Jinan Yaoqiang Airport, we can provide business vehicle to take you coming and departure.
