： +86-18560016265 ：info@xsybearing.com
| Quantity: | |
|---|---|
GEEW12ES GEEW15ES GEEW16ES GEEW17ES GEEW20ES GEEW25ES GEEW30ES GEEW32ES GEEW35ES GEEW40ES GEEW45ES GEEW50ES GEEW60ES GEEW63ES GEEW70ES GEEW80ES GEEW90ES GEEW100ES GEEW110ES GEEW125ES GEEW160ES GEEW200
ZGXSY, OEM, WORLD FAMOUS BRAND, NO BRAND
China
Bearing Steel, GCR 15, Bronze, PTFE composite
GEEW…ES Series
12 Months / One Year
Industrial machinery housings Mechanical support structures Hydraulic linkage assemblies Heavy equipment joints Structural motion systems Machine frame assemblies
By International Express or Sea or Railway
1 PC
Description:

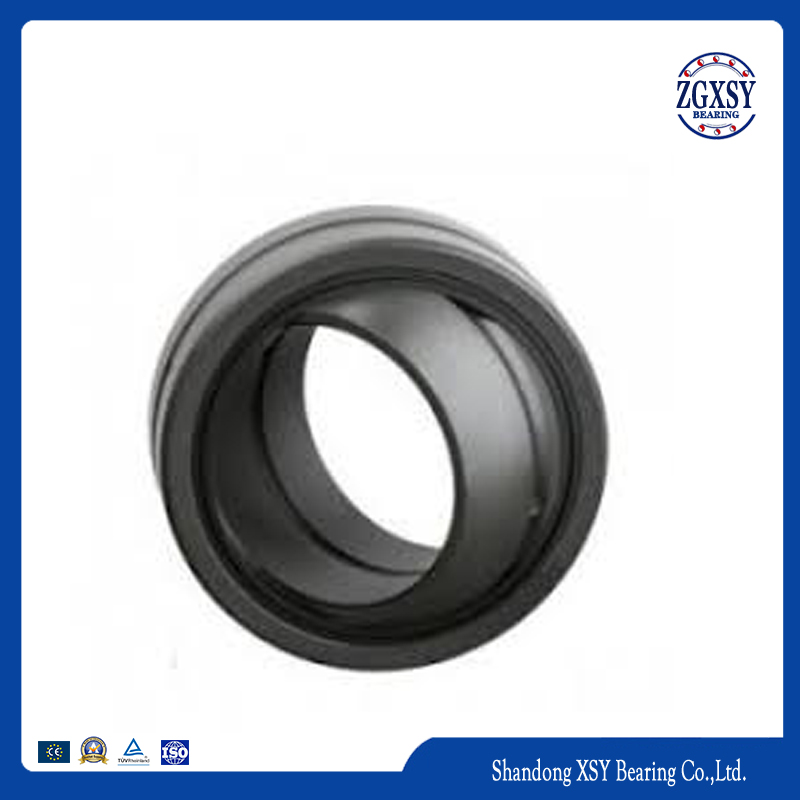

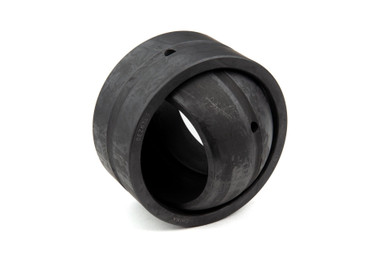

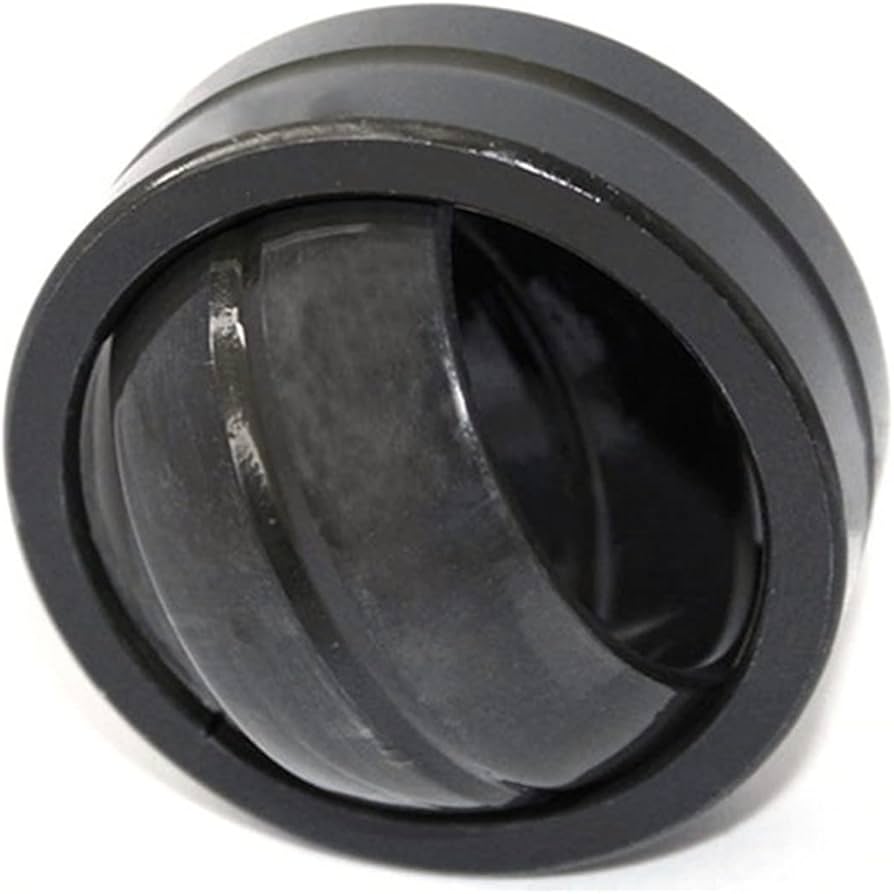

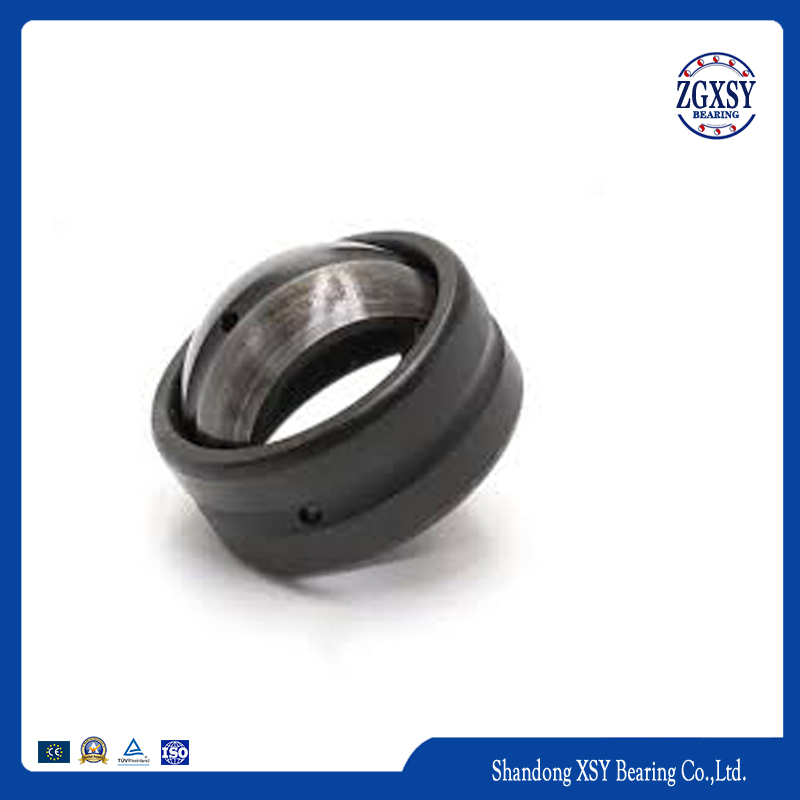

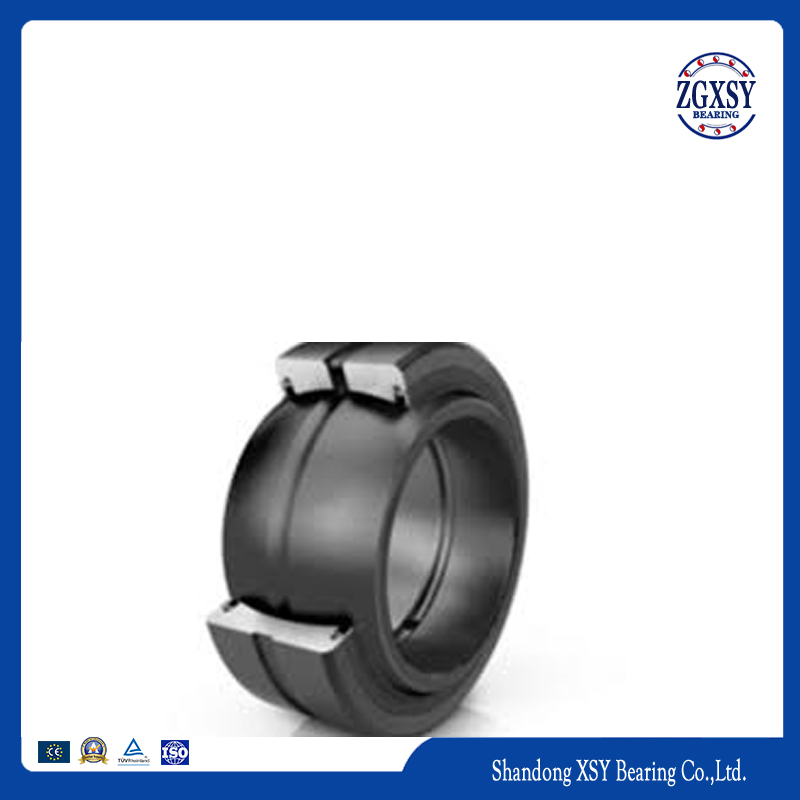

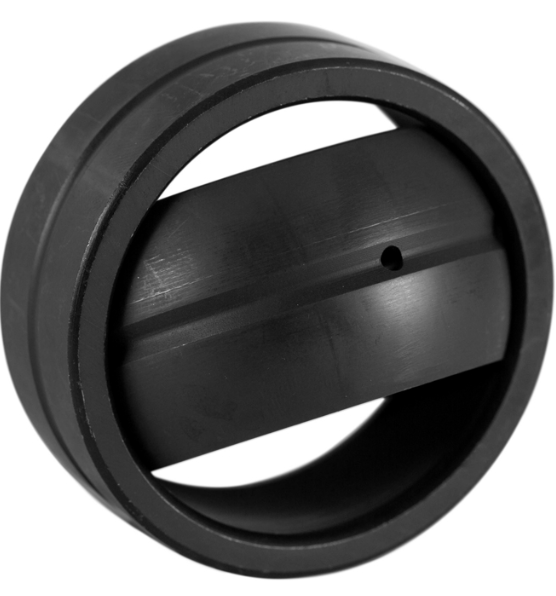

GEEW…ES Series Spherical Plain Bearings feature a wide outer ring combined with steel-on-steel sliding surfaces, designed to improve housing stability and support strength. The widened outer ring increases contact area with the housing, helping distribute loads more evenly and improving mounting stability.
This series is suitable for applications requiring secure housing support and reliable articulation movement.
Specification:
| Bearing number | Dimensions/mm | Load ratings kN | Weight ≈kg | |||||||||
| d | D | B | C | d₁ max | dk | rs min | r1s min | α ° ≈ | Dynamic | Static | ||
| GEEW12ES | 12 | 22 | 12 | 7 | 15.5 | 18 | 0.3 | 0.3 | 4 | 10 | 53 | 0.017 |
| GEEW15ES | 15 | 26 | 15 | 9 | 18.5 | 22 | 0.3 | 0.3 | 5 | 16 | 84 | 0.028 |
| GEEW16ES | 16 | 28 | 16 | 9 | 20 | 23 | 0.3 | 0.3 | 4 | 17 | 85 | 0.034 |
| GEEW17ES | 17 | 30 | 17 | 10 | 21 | 25 | 0.3 | 0.3 | 7 | 21 | 106 | 0.043 |
| GEEW20ES | 20 | 35 | 20 | 12 | 25 | 29 | 0.3 | 0.3 | 4 | 30 | 146 | 0.069 |
| GEEW25ES | 25 | 42 | 25 | 16 | 30.5 | 35.5 | 0.6 | 0.6 | 4 | 48 | 240 | 0.124 |
| GEEW30ES | 30 | 47 | 30 | 18 | 34 | 40.7 | 0.6 | 0.6 | 4 | 62 | 310 | 0.159 |
| GEEW32ES | 32 | 52 | 32 | 18 | 37 | 43 | 0.6 | 1 | 4 | 65 | 328 | 0.207 |
| GEEW35ES | 35 | 55 | 35 | 20 | 40 | 47 | 0.6 | 1 | 4 | 79 | 399 | 0.248 |
| GEEW40ES | 40 | 62 | 40 | 22 | 46 | 53 | 0.6 | 1 | 4 | 99 | 495 | 0.349 |
| GEEW45ES | 45 | 68 | 45 | 25 | 52 | 60 | 0.6 | 1 | 4 | 127 | 637 | 0.468 |
| GEEW50ES | 50 | 75 | 50 | 28 | 57 | 66 | 0.6 | 1 | 4 | 156 | 780 | 0.62 |
| GEEW60ES | 60 | 90 | 60 | 36 | 68 | 80 | 1 | 1 | 4 | 245 | 1220 | 1.11 |
| GEEW63ES | 63 | 95 | 63 | 36 | 71.5 | 83 | 1 | 1 | 4 | 253 | 1260 | 1.27 |
| GEEW70ES | 70 | 105 | 70 | 40 | 78 | 92 | 1 | 1 | 4 | 313 | 1560 | 1.69 |
| GEEW80ES | 80 | 120 | 80 | 45 | 91 | 105 | 1 | 1 | 4 | 400 | 2000 | 2.55 |
| GEEW90ES | 90 | 130 | 90 | 50 | 99 | 115 | 1 | 1 | 4 | 488 | 2440 | 3.04 |
| GEEW100ES | 100 | 150 | 100 | 55 | 113 | 130 | 1 | 1 | 4 | 607 | 3030 | 4.87 |
| GEEW110ES | 110 | 160 | 110 | 55 | 124 | 140 | 1 | 1 | 4 | 654 | 3270 | 5.53 |
| GEEW125ES | 125 | 180 | 125 | 70 | 138 | 160 | 1 | 1 | 4 | 950 | 4750 | 8.19 |
| GEEW160ES | 160 | 230 | 160 | 80 | 177 | 200 | 1 | 1 | 4 | 1360 | 6800 | 15.8 |
| GEEW200ES | 200 | 290 | 200 | 100 | 221 | 250 | 1.1 | 1.1 | 4 | 2120 | 10600 | 31.7 |
| GEEW250ES | 250 | 400 | 250 | 120 | 317 | 350 | 1.1 | 1.1 | 4 | 3750 | 17800 | 101 |
| GEEW320ES | 320 | 520 | 320 | 160 | 405 | 450 | 1.1 | 1.1 | 4 | 6200 | 30500 | 225 |
Advantages:
1. Wide outer ring structure
Provides increased housing contact area for improved stability.
2. Enhanced mounting stability
Reduces movement within the housing during operation.
3. Steel sliding surfaces
Ensures reliable articulation performance.
4. Improved load distribution in housing
Helps reduce stress concentration on the bearing seat.
5. Stable mechanical support
Suitable for demanding industrial installations.
Features:
1. Wide outer ring design
2. Steel sliding interface
3. Stable housing support
4. Reinforced outer ring structure
5. Designed for articulated connections
Applications:
1. Industrial machinery housings
2. Mechanical support structures
3. Hydraulic linkage assemblies
4. Heavy equipment joints
5. Structural motion systems
6. Machine frame assemblies
FAQ:
Q1: Are you factory or trading company?
A: We are factory with most competitive price and high quality.
Q2: Customized accepted?
A: Yes, sure. If that, please send us the drawing of the type with the picture will be most appreciated.
A3: Can I get some samples or more discounts?
A: Yes, just to contact us and we are honored to offer samples to you for checking.
Q4: How about the time of delivery ?
A: For the products in stock, it will be sent out in 1-3 days; Or it will be sent out 3-30 days according to the quantity.
Q5: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q6: How can I get a quotation?
A: Normally, we will quote within 24 hours. If you are in urgent, please give a call or let us know in your email with the details.
We need information bellow:
1.The Model Number/ the detail drawing of non-standard bearing;
2.Quantity;
3.Material;
4.Surface treatment;
5.Any special packing or other requirements.
Our Services:
Our Quality:
Quality is life. We use only the best quality materials to ensure that our product range meets the highest standards.
All products we sell are strictly selected and tested by our QC department.
Warranty:
We support a 12-month warranty for all products.
Payment:
We accept payment via TT (Bank transfer), PayPal, etc.
We accept bank transfers for large orders. For small orders, PayPal is preferred.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FedEx, EMS, air freight, and sea freight.
