| Quantity: | |
|---|---|
QEH15SA QEH15CA QEH20SA QEH20CA QEH25SA QEH25CA QEH30SA QEH30CA QEH35SA QEH35CA
ZGXSY, OEM, WORD FAMOUS BRAND, NO BRAND
China
Bearing Steel, GCR 15
WEH-CA Series
12 Months / One Year
Heavy-duty CNC machine tools, Precision stamping and forging equipment, New energy and aerospace
By International Express or Sea or Railway
1 PC
Product Description:

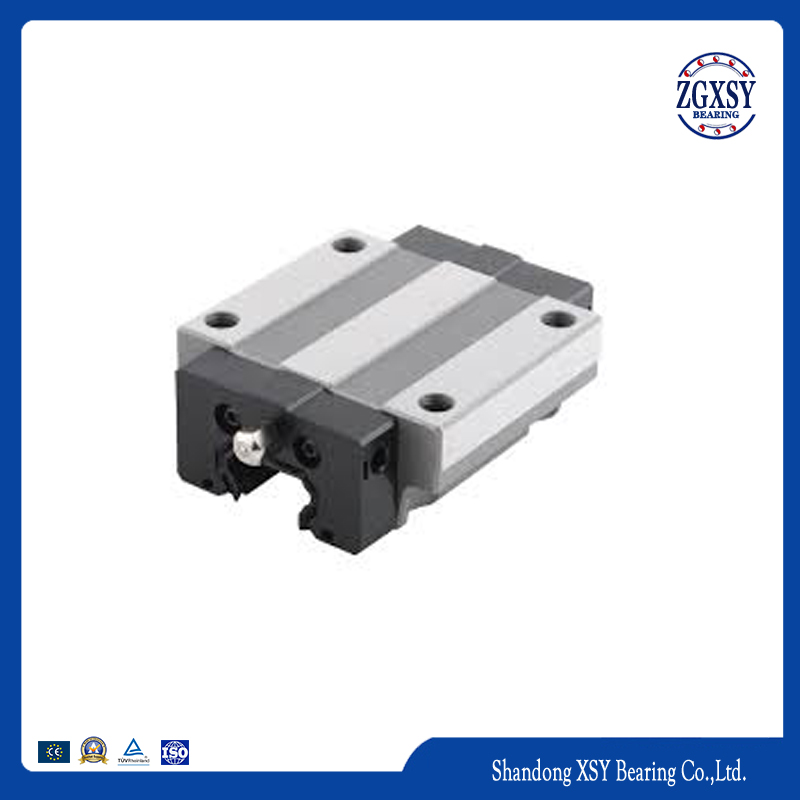

The QEH-CA/SA Series Direct Linear Guide features a high-precision rolling guide structure design, developed specifically for medium to heavy loads, high operational stability, and long-term reliability. While maintaining a compact size, this series significantly improves load capacity and motion smoothness, making it suitable for industrial automation and precision machinery applications.
Specification:
| Model No. | Diensions of Assembly [mm] | Dimension of Block [mm] | Dimension of Rail [mm] | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment | Weight | |||||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | M | T | H2 | H3 | WR | HR | D | h | d | P | E | [mm] | C(kN) | C0(kN) | MR(kN·m) | MP(kN·m) | MY(kN·m) | Block(kg) | Rail(kg/m) | |
| QEH15SA | 24 | 4 | 9.5 | 34 | 26 | 4 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3x16 | 8.56 | 8.79 | 0.07 | 0.03 | 0.03 | 0.09 | 1.25 |
| QEH15CA | 26 | 39.8 | 56.8 | 10.15 | 12.53 | 15.28 | 0.12 | 0.09 | 0.09 | 0.15 | |||||||||||||||||||||
| QEH20SA | 28 | 6 | 11 | 42 | 32 | 5 | - | 29 | 50 | 18.75 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6.5 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5x16 | 11.57 | 12.18 | 0.13 | 0.05 | 0.05 | 0.15 | 2.08 |
| QEH20CA | 32 | 48.1 | 69.1 | 12.3 | 16.5 | 20.21 | 0.21 | 0.15 | 0.15 | 0.23 | |||||||||||||||||||||
| QEH25SA | 33 | 6.2 | 12.5 | 48 | 35 | 6.5 | - | 35.5 | 60.1 | 21.9 | 5 | 12 | M6x9 | 8 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 18.24 | 18.9 | 0.22 | 0.1 | 0.1 | 0.24 | 2.67 |
| QEH25CA | 35 | 59 | 83.6 | 16.15 | 26.03 | 31.49 | 0.37 | 0.29 | 0.29 | 0.4 | |||||||||||||||||||||
| QEH30SA | 42 | 10 | 16 | 60 | 40 | 10 | - | 41.5 | 67.5 | 25.75 | 6 | 12 | M8x12 | 9 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 26.27 | 27.82 | 0.4 | 0.18 | 0.18 | 0.44 | 4.35 |
| QEH30CA | 40 | 70.1 | 96.1 | 20.05 | 37.92 | 46.63 | 0.67 | 0.51 | 0.51 | 0.75 | |||||||||||||||||||||
| QEH35SA | 48 | 11 | 18 | 70 | 50 | 10 | - | 51 | 76 | 30.3 | 6.25 | 12 | M8x12 | 10 | 8.5 | 8.5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8x25 | 36.39 | 36.43 | 0.61 | 0.33 | 0.33 | 0.77 | 6.14 |
| QEH35CA | 50 | 83 | 108 | 21.3 | 51.18 | 59.28 | 1 | 0.75 | 0.75 | 1.19 | |||||||||||||||||||||
Advantages:
1. Enhanced Load Capacity
The optimized internal rolling structure effectively withstands composite loads, resulting in more stable operation.
2. High Operating Smoothness
Low friction resistance and continuous, smooth motion make it suitable for high-speed reciprocating applications.
3. Excellent Wear Resistance and Durability
High-strength materials and precision heat treatment processes extend service life.
4. Good Installation Adaptability
The direct slide rail structure facilitates assembly and system integration.
5. High Long-Term Operating Reliability
Suitable for continuous operation environments, reducing maintenance frequency.
Performance:
1. Linear rolling guide structure
2. Supports multi-directional loads
3. Balanced design for rigidity and precision
4. Low operating noise
5. Compact structure, saving equipment space
Applications:
1. Automated assembly equipment
2. Industrial robot systems
3. Precision machining equipment
4. Electronic manufacturing and testing equipment
5. CNC machine tools
6. Linear motion modules
Our Services:
Our Quality:
Quality is the life. We use only the best quality material to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We support 12 months warranty for all products.
Payment:
We accept payment via TT (Bank transfer), Paypal etc..
We accept bank transfer for large orders. For small order, you'd better pay via Paypal.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
FAQ:
Q1: Are you factory or trading company?
A: We are factory with the most competitive price and high quality.
Q2: Customized accepted?
A: Yes, sure. If that, please send us the drawing of the type with the picture will be most appreciated.
A3: Can I get some samples or more discounts?
A: Yes, just to contact us and we are honored to offer samples to you for checking.
Q4: How about the time of delivery?
A: For the products in stock, it will be sent out in 1-3 days; Or it will be sent out 3-30 days according to the quantity.
Q5: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q6: How can I get a quotation?
A: Normally, we will quote within 24 hours. If you are in urgent, please give a call or let us know in your email with the details.
We need information bellow:
1.The Model Number/ the detail drawing of non-standard bearing;
2.Quantity;
3.Material;
4.Surface treatment;
5.Any special packing or other requirements.
Q7: Where is your factory?
A: Our factory is located in Linqing City, Shandong Province, China. It only 2.5 hours to Jinan Yaoqiang Airport, we can provide business vehicle to take you coming and departure.
