| Quantity: | |
|---|---|
GEG4E GEG5E GEG6E GEG8E GEG10E GEG12E GEG15ES GEG17ES GEG20ES GEG25ES GEG30ES GEG35ES GEG40ES GEG45ES GEG50ES GEG60ES GEG70ES GEG80ES GEG90ES GEG100ES GEG110ES GEG120ES GEG140ES GEG160ES GEG180ES
ZGXSY, OEM, WORLD FAMOUS BRAND, NO BRAND
China
Bearing Steel, GCR 15, Bronze, PTFE composite
GEG…ES-2RS Series
12 Months / One Year
Excavators and loaders, Road construction machinery, Material handling machines
By International Express or Sea or Railway
1 PC
Description:

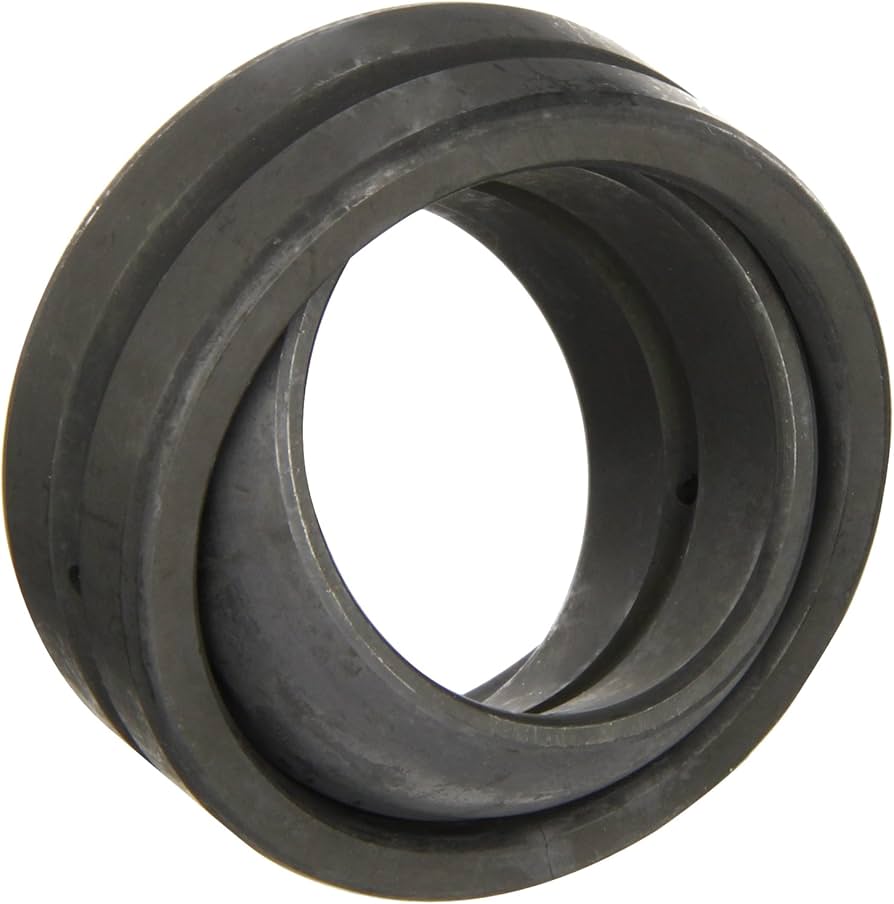

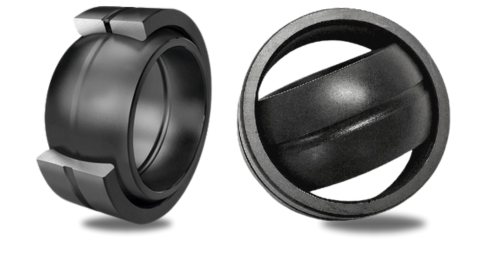

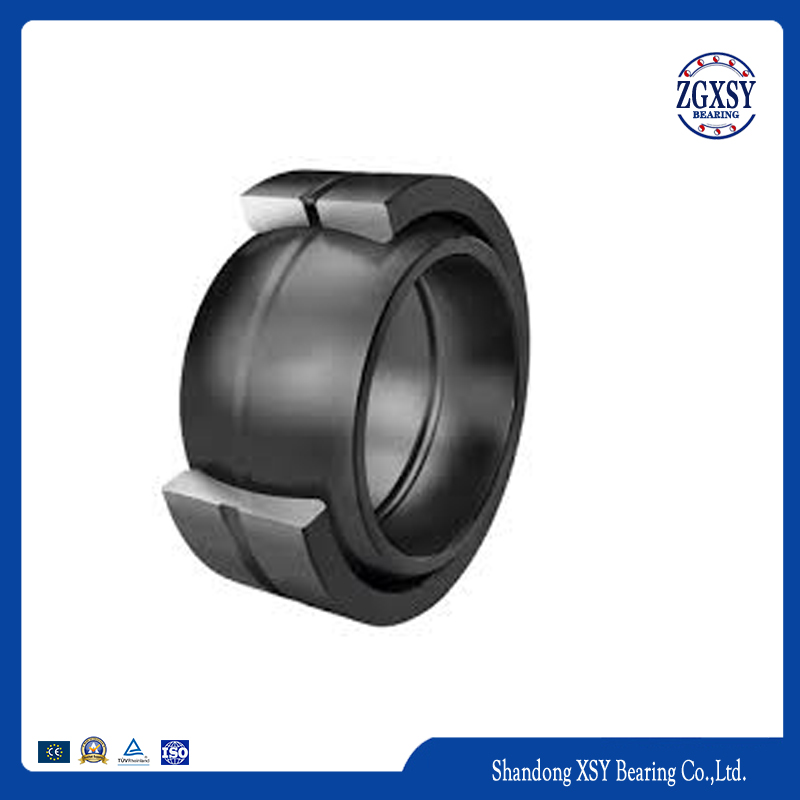

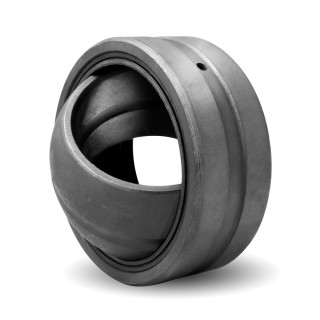

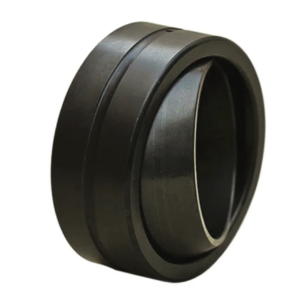

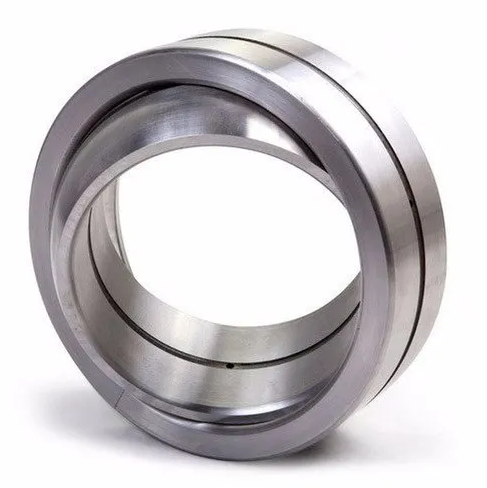

GEG…ES-2RS Series Spherical Plain Bearings combine an extra-wide ring structure, steel sliding surfaces, and double sealing protection, providing reliable performance in extremely demanding articulation applications. The reinforced design improves structural support while the sealing system protects against external contamination.
This series is especially suitable for heavy industrial equipment operating under high loads and harsh working environments.
Specification:
| Bearing number | Dimensions mm | Load ratings kN | Weight ≈kg | |||||||||
| d | D | B | C | dk | rs min | r1s min | α° ≈ | Dynamic | Static | |||
| GEG4E | 4 | 14 | 7 | 4 | 10 | 0.3 | 0.3 | 20 | 3.4 | 17 | 0.01 | |
| GEG5E | 5 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 5.5 | 27 | 0.01 | |
| GEG6E | 6 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 5.5 | 27 | 0.01 | |
| GEG8E | 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 21 | 8.1 | 40 | 0.01 | |
| GEG10E | 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 18 | 10 | 53 | 0.02 | |
| GEG12E | 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 18 | 16 | 84 | 0.04 | |
| GEG15ES | GEG15ES-2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 21 | 106 | 0.05 |
| GEG17ES | GEG17ES-2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 30 | 146 | 0.08 |
| GEG20ES | GEG20ES-2RS | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 48 | 240 | 0.15 |
| GEG25ES | GEG25ES-2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 62 | 310 | 0.2 |
| GEG30ES | GEG30ES-2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 79 | 399 | 0.3 |
| GEG35ES | GEG35ES-2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 99 | 495 | 0.4 |
| GEG40ES | GEG40ES-2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 127 | 637 | 0.54 |
| GEG45ES | GEG45ES-2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 156 | 780 | 0.7 |
| GEG50ES | GEG50ES-2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 245 | 1220 | 1.42 |
| GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 313 | 1560 | 2.09 |
| GEG70ES | GEG70ES-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 400 | 2000 | 3.01 |
| GEG80ES | GEG80ES-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 488 | 2440 | 3.61 |
| GEG90ES | GEG90ES-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 607 | 3030 | 5.5 |
| GEG100ES | GEG100ES-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 654 | 3270 | 6.04 |
| GEG110ES | GEG110ES-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 950 | 4750 | 9.74 |
| GEG120ES | GEG120ES-2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 1070 | 5350 | 15.1 |
| GEG140ES | GEG140ES-2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 1360 | 6800 | 18.9 |
| GEG160ES | GEG160ES-2RS | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 16 | 1530 | 7650 | 24.8 |
| GEG180ES | GEG180ES-2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 2120 | 10600 | 35.9 |
| GEG200ES | GEG200ES-2RS | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 2320 | 11600 | 44.9 |
| GEG220ES | GEG220ES-2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 2550 | 12700 | 50.9 |
| GEG240ES | GEG240ES-2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 3030 | 15190 | 65.3 |
| GEG260ES | GEG260ES-2RS | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 3570 | 17850 | 82 |
| GEG280ES | GEG280ES-2RS | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 3800 | 19100 | 96.6 |
Advantages:
1. Extra-wide structural design
Provides enhanced support for demanding joint assemblies.
2. Steel sliding contact construction
Offers excellent resistance to wear under heavy mechanical loads.
3. Integrated sealing protection
Helps prevent intrusion of abrasive particles and moisture.
4. Strong impact resistance
Suitable for equipment exposed to shock loading.
5. Reliable performance in harsh environments
Designed for demanding industrial applications.
Features:
1. Extra-wide ring geometry
2. Steel sliding interface
3. Dual sealing arrangement
4. Reinforced bearing construction
5. Designed for severe operating conditions
Applications:
1. Mining equipment joints
2. Earthmoving machines
3. Heavy transport machinery
4. Metallurgical equipment
5. Large hydraulic systems
6. Off-road mechanical linkages
FAQ:
Q1: Are you factory or trading company?
A: We are factory with most competitive price and high quality.
Q2: Customized accepted?
A: Yes, sure. If that, please send us the drawing of the type with the picture will be most appreciated.
A3: Can I get some samples or more discounts?
A: Yes, just to contact us and we are honored to offer samples to you for checking.
Q4: How about the time of delivery ?
A: For the products in stock, it will be sent out in 1-3 days; Or it will be sent out 3-30 days according to the quantity.
Q5: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q6: How can I get a quotation?
A: Normally, we will quote within 24 hours. If you are in urgent, please give a call or let us know in your email with the details.
We need information bellow:
1.The Model Number/ the detail drawing of non-standard bearing;
2.Quantity;
3.Material;
4.Surface treatment;
5.Any special packing or other requirements.
Our Services:
Our Quality:
Quality is life. We use only the best quality materials to ensure that our product range meets the highest standards.
All products we sell are strictly selected and tested by our QC department.
Warranty:
We support a 12-month warranty for all products.
Payment:
We accept payment via TT (Bank transfer), PayPal, etc.
We accept bank transfers for large orders. For small orders, PayPal is preferred.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FedEx, EMS, air freight, and sea freight.
