： +86-18560016265 ：info@xsybearing.com
| Quantity: | |
|---|---|
RGL15CA RGL20CA RGL20HA RGL25CA RGL25HA RGL30CA RGL30HA RGL35CA RGL35HA RGL45CA RGL45HA RGL55CA RGL55HA
ZGXSY, OEM, WORD FAMOUS BRAND, NO BRAND
China
Bearing Steel, GCR 15
WEH-CA Series
12 Months / One Year
Heavy-duty assembly equipment, Mechanical handling systems, Industrial positioning platforms, Linear transfer systems
By International Express or Sea or Railway
1 PC
Product Description:

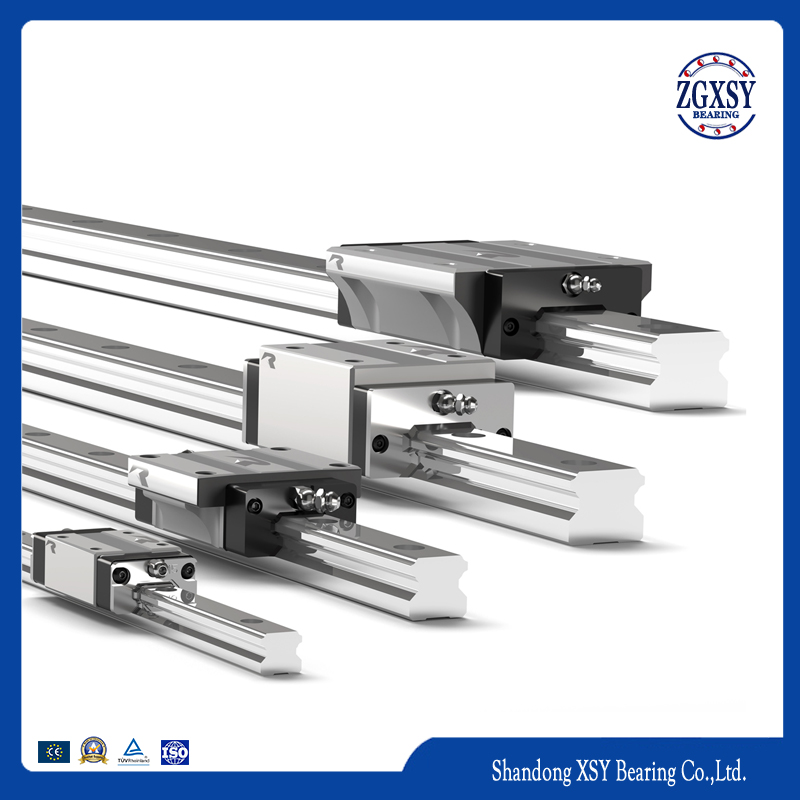

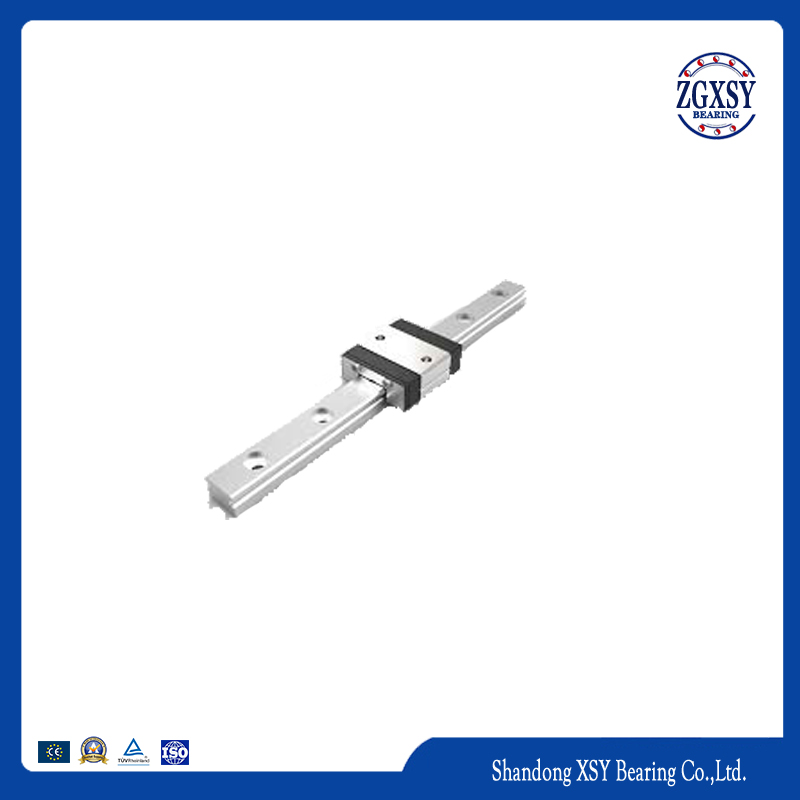

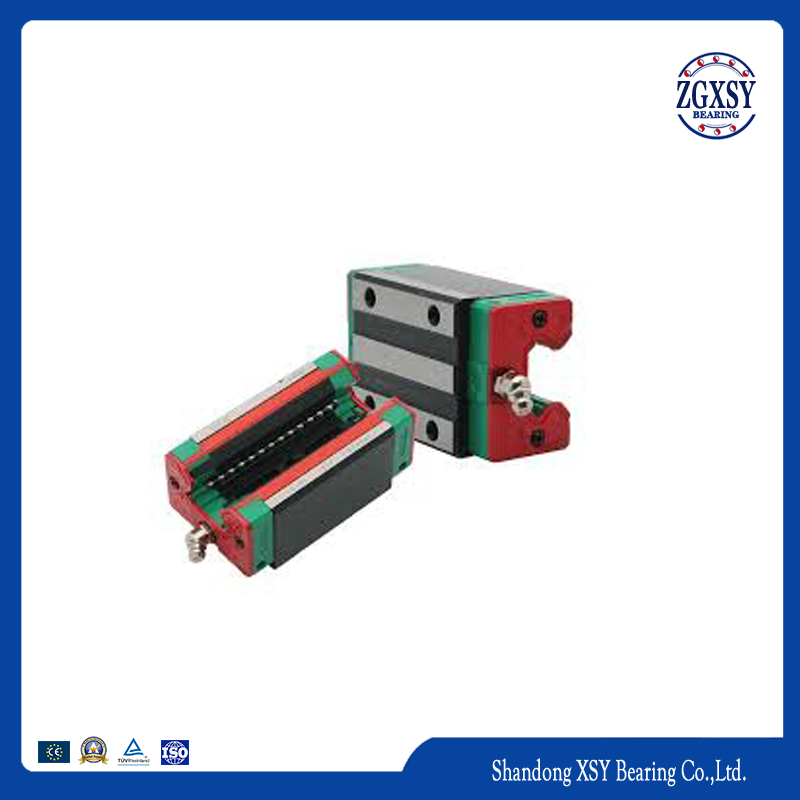

RGL-CA / HA Series Direct Linear Guide is engineered for high structural rigidity and long-term operational stability. The series adopts a reinforced rail-and-block design to ensure reliable linear motion under demanding industrial conditions, making it suitable for equipment requiring consistent accuracy and strong mechanical support.
Specification:
| Model No. | Diensions of Assembly [mm] | Dimension of Block [mm] | Dimension of Rail [mm] | Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment | Weight | |||||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L | L1 | K1 | K2 | G | MxL | T | H2 | H3 | WR | HR | D | h | d | P | E | [mm] | C(kN) | C0(kN) | MR(kN·m) | MP(kN·m) | MY(kN·m) | Block(kg) | Rail(kg/m) | |
| RGL15CA | 24 | 4 | 9.5 | 34 | 26 | 4 | 26 | 45 | 68 | 13.4 | 4.7 | 5.3 | M4x5.5 | 6 | 3.6 | 6.1 | 15 | 16.5 | 7.5 | 5.7 | 4.5 | 30 | 20 | M4x16 | 11.3 | 24 | 0.311 | 0.173 | 0.173 | 0.15 | 1.8 |
| RGL20CA | 30 | 5 | 12 | 44 | 32 | 6 | 36 | 57.5 | 86 | 15.8 | 6 | 5.3 | M5x6 | 8 | 4.3 | 4.3 | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5x20 | 21.3 | 46.7 | 0.647 | 0.46 | 0.46 | 0.32 | 2.76 |
| RGL20HA | 50 | 77.5 | 106 | 18.8 | 26.9 | 63 | 0.872 | 0.837 | 0.837 | 0.42 | |||||||||||||||||||||
| RGL25CA | 36 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 64.5 | 97.9 | 20.75 | 7.25 | 12 | M6x8 | 9.5 | 6.2 | 6 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 | 0.51 | 3.08 |
| RGL25HA | 50 | 81 | 114.4 | 21.5 | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | 0.63 | |||||||||||||||||||||
| RGL30CA | 42 | 6 | 16 | 60 | 40 | 10 | 40 | 71 | 109.8 | 23.5 | 8 | 12 | M8x10 | 9.5 | 6.5 | 7.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 | 0.8 | 4.41 |
| RGL30HA | 60 | 93 | 131.8 | 24.5 | 48.1 | 105 | 1.846 | 1.712 | 1.712 | 1.03 | |||||||||||||||||||||
| RGL35CA | 48 | 6.5 | 18 | 70 | 50 | 10 | 50 | 79 | 124 | 22.5 | 10 | 12 | M8x12 | 12 | 9 | 12.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8x25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 | 1.27 | 6.06 |
| RGL35HA | 72 | 106.5 | 151.5 | 25.25 | 73.1 | 142 | 2.93 | 2.6 | 2.6 | 1.65 | |||||||||||||||||||||
| RGL45CA | 60 | 8 | 20.5 | 86 | 60 | 13 | 60 | 106 | 153.2 | 31 | 10 | 12.9 | M10x17 | 16 | 10 | 14 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 | 2.47 | 9.97 |
| RGL45HA | 80 | 139.8 | 187 | 37.9 | 116 | 230.9 | 6.33 | 5.47 | 5.47 | 3.2 | |||||||||||||||||||||
| RGL55CA | 70 | 10 | 23.5 | 100 | 75 | 12.5 | 75 | 125.5 | 183.7 | 37.75 | 12.5 | 12.9 | M12x18 | 17.5 | 12 | 17.5 | 53 | 44 | 23 | 20 | 16 | 60 | 30 | M14x45 | 130.5 | 252 | 8.01 | 5.4 | 5.4 | 3.91 | 13.98 |
| RGL55HA | 95 | 173.8 | 232 | 51.9 | 167.8 | 348 | 11.15 | 10.25 | 10.25 | 5.32 | |||||||||||||||||||||
Features:
1. Reinforced linear guiding structure
2. High mechanical strength configuration
3. Consistent motion accuracy
4. Suitable for long-stroke applications
5. Designed for industrial-duty environments
Advantages：
1. Superior structural stiffness
Reinforced rail profile improves resistance to deformation during operation.
2. Stable motion under continuous load
Maintains smooth travel even during long-duty cycles.
3. Enhanced operational reliability
Designed to reduce performance fluctuation over extended service periods.
4. Optimized contact design
Improves load distribution and minimizes localized stress.
5. Low maintenance requirement
Suitable for systems where maintenance access is limited.
Applications:
1. Industrial automation machinery
2. Linear transfer systems
3. Heavy-duty assembly equipment
4. Production line motion units
5. Mechanical handling systems
6. Industrial positioning platforms
Our Services:
Our Quality:
Quality is the life. We use only the best quality material to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We support 12 months warranty for all products.
Payment:
We accept payment via TT (Bank transfer), Paypal etc..
We accept bank transfer for large orders. For small order, you'd better pay via Paypal.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
FAQ:
Q1: Are you factory or trading company?
A: We are factory with the most competitive price and high quality.
Q2: Customized accepted?
A: Yes, sure. If that, please send us the drawing of the type with the picture will be most appreciated.
A3: Can I get some samples or more discounts?
A: Yes, just to contact us and we are honored to offer samples to you for checking.
Q4: How about the time of delivery?
A: For the products in stock, it will be sent out in 1-3 days; Or it will be sent out 3-30 days according to the quantity.
Q5: What's your MOQ?
A: We can accept trial orders (even 1 pc) for prototype, there are plenty of stocks in factory, and can be shipped very fast.
Q6: How can I get a quotation?
A: Normally, we will quote within 24 hours. If you are in urgent, please give a call or let us know in your email with the details.
We need information bellow:
1.The Model Number/ the detail drawing of non-standard bearing;
2.Quantity;
3.Material;
4.Surface treatment;
5.Any special packing or other requirements.
Q7: Where is your factory?
A: Our factory is located in Linqing City, Shandong Province, China. It only 2.5 hours to Jinan Yaoqiang Airport, we can provide business vehicle to take you coming and departure.
